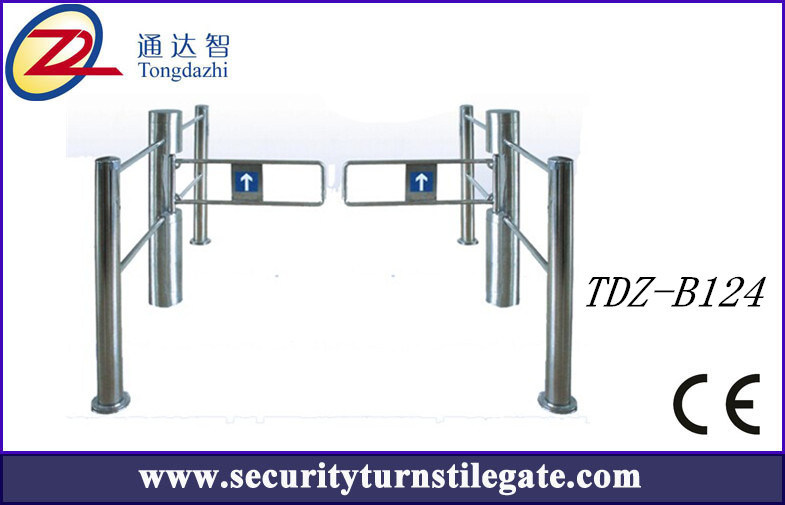

Customized Electronic Turnstile Access Swing barrier gate for magnetic card
The material is standard 304 stainless steel, during the casing within a professional guide tank. and during the
casing within a professional guide tank. Can be installed in indoor, outdoor with shed, applicable to restrict the
passing rate of the place, has the count, attendance, current limiting function. The enter close are more wider
than others. Have a higher traffic capacity, can make motorcycle, bicycle and other small vehicles through,
also can be used as a barrier-free access.
Feature of the product:
1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function :Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set a
one-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Small button in the main control panel can be set state of equipment.
7. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined
time, click stop working automatically, the default reset again after a delay, and the intensity is
8. Scour protection function ,when the gate signal is not received, the stick is automatically locked
9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically
cancel the access permissions of the user.
10. Normally open or closed can be freely adjusted to meet different venue requirements
11. Mount can be used with a variety of reading devices, work when it receive relay switch signal
12. Single ,bi-directional swing function, one-way or two-way control personnel access
13. Directly through the remote management computer control and management, automatically reset
automatic reset delay, the system default is 10 seconds after opening (adjustable)
14. Power failure emergency function after power channel automatically open, closed automatically after
power on, to meet the special needs of the user and the fire safety requirements
1. Structure: frame structure/standard stainless steel shell
2. Production: full CNC laser cutting machine production
3. Dimensions: ￠168*1050mm)
4. Stainless steel thickness: 1.5mm, body 1.2mm
5. Maximum channel width :500-900mm
7. Transmission Angle of swing arm:180°
8. The programmable gates control state, with a variety of operating modes you can choose, you can set a
one-way or two-way control
9. Power: 50W
10. Power supply voltage: AC220 ± 10% V, 50HZ
11. drive motor: brushless DC motor (24V)
12. Communication Interface: Standard RS485 interface, distance ≤ 1200 meters or TCP / IP
13. LED indicator: 1
14. reader windows: 2
15. access speed :30-40 / min
16. power on the prevailing state required time: 3 seconds
17. failure automatically reset after time: 10 seconds
18. input interface: dry contact signal or +12 V level signal or pulse width ≥ 100ms DC12V pulse signal,
driving current ≥ 10mA;
19. Working environment: indoor, outdoor (with shed)
20. Temperature: -10 °C ~ 50 °C Relative humidity: ≤ 90%, no condensation
