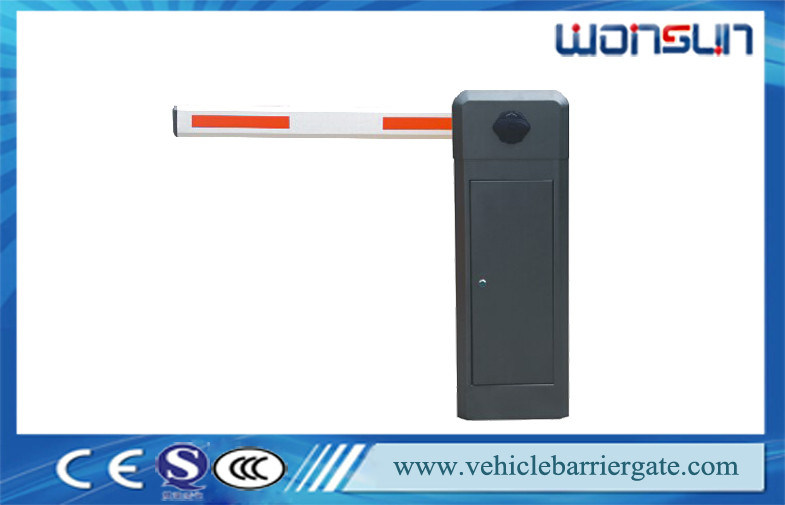

Road Automatic Boom Barrier

Road Automatic Boom Barrier

  • Road Automatic Boom Barrier
Road Automatic Boom Barrier
Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Housing Dimension: 320 * 280 * 935 Mm Arm Type: Straight Arm, Folding Arm, Fence Arm, Optional
Housing Material: 2mm Cold Roller Steel Plate Open / Close Time: 1s, 1.8s, 3s, 6s
Power Supply: AC 220V / 110V Max Boom Length: 6m
High Light:

Parking Barrier Gate

,

Car Park Barriers

Boom Backtrack Automatic Boom Barrier With Commpression Spring And Tension Spring


Quick Detail:

Name: Automatic boom barrier

Colors: Orange, yellow, blue, red, customized

Operating temperatures: -25  to 75°C

Net weight: 48kg

Packing size: 1,020*365*467mm, weight 50kg

Usage: Highway, parking lot, community, hotel and factory

Voltage:AC220V, AC110V

Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST11521

90 degree, Articulated boom

5m

6 seconds

WST11522

90 degree, Articulated boom

3m

3 seconds

WST11561

180 degree, Articulated boom

5m

6 seconds

WST11562

180 degree, Articulated boom

3m

3 seconds
















Applications:



Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.



Functions & Features


a. Motor cooling fan to avoid the over-heating possibility

b. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

c. Manual release device to operate the barrier when power failure

d. Automatic reversing when the barrier boom meets the obstruction

e. Auto closing realization through menu setting on the control panel

f. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

g. RS485 Communication Module is compatible

h. Machine core with compression spring, effectively avoids the accidents caused by spring breaking.


Specifications



Model

WST1151

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44


With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers

1)     Q: Connected power and press open/close button but car parking barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but car parking barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, car parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position



Our Car Park Barriers Packing List



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole
