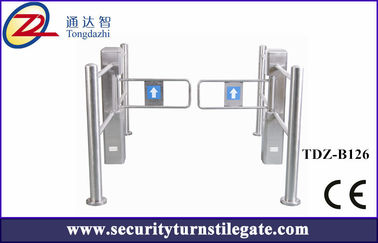

Counter supermarket turnstile Security Products with 180 degree Arm angle

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 1000 -2500 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Material:	304 / 316 Stainless Steel	Thickness:	1.5mm
Dimension:	￠168*1050mm	Package Size:	14504001070mm
Occasions:	Supermarket , Shopping Mall , Airport	Arm Length:	Not Beyond 900mm
Machine Core:	Fully Automatic	Motor:	Brushless DC Motor (24V)
High Light:	Swing Turnstile , Entrance Turnstiles

Counter supermarket turnstile Security Products with 180 degree Arm angle

Quick Details

316 stainless steel automatic pillar swing turnstile with guardrail for supermarket
Channel width:600-900mm
Arm transmission angle : 90 degree or 180 degree
manual / full automatic are optional
304 / 316 material is avaliable

Product Descriptions:

Waterproof, sunscreen, anti-temperature, anti-cold.
The single way swing turnstile is often used in supermarket
Can set a one-way or two-way control for different situations
Compatible IC, ID, magnetic card, bar code card, and other control equipment.
Small button into the main control panel ,can be set state of equipment.
Anti-pinch, anti bumps function
Scour protection function ,when the gate signal is not received, arms keep closed
With automatic reset function,if does not pass in the set time,turnstile will get back
Normally open or closed can be freely adjusted
can be used with a variety of reading devices, work when it receive relay switch signal
Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically

Counter supermarket turnstile Security Products with 180 degree Arm angle 0

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	￠168*1050mm
Arm length	not beyond 900mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	30 - 40 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Counter supermarket turnstile Security Products with 180 degree Arm angle 1

Customized Features:

Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
SDK and technical support will be provided for Secondary development of software
