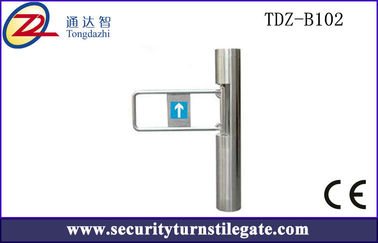

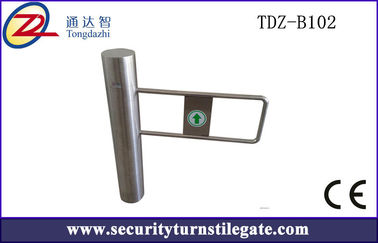

Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel

Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel

  • Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel
  • Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel
Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel
Product Details:
Place of Origin: china
Brand Name: TDZ
Certification: CE
Model Number: TDZ - B102
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 400 - 800 / Piece
Packaging Details: paper carton/wooden case
Delivery Time: 5-7 working days after ordered
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 pieces / month
Contact Now
Detailed Product Description
Opening Pattern: Automatic Size: Diameter:168 * H 1050 Mm
Thick Of Steel: 1.5mm Material: 304 Stainless Steel
Passing Speed: < 40 Person/min Arm Rotation Angle: 180
Power Supply Voltage: AC220 ± 10%V, 50HZ Swing Direction:: One-way Or Two-way
Communication Interface: RS485 Electrical Standard Or TCP/IP Working Environment: Indoor And Outdoor With Shed
High Light:

Swing Turnstile

,

Entrance Turnstiles



Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel





Quick Details



  1. Diameter:168 * H 1050 mm
  2. material and color are optinal
  3. Material:304stainless steel
  4. turnstile manufacturer,factory price
  5. OEM welcome



Product Description



TDZ-B102 supermarket check induction manual door, 304 stainless steel, easy way, for use in the supermarket entrance, residential, shopping, reading hall, terminals and other public-way channel, and with power locks wing gates, smart swing gates, tripod turnstile intelligent brake used together.





Pedestrian Entrance Supermarket Turnstile Access Control with 304 stainless steel 0





Technical Parameters



Structure

frame structure/standard stainless steel shell

Production

full CNC laser cutting machine production

Gate opening time

0.2 seconds

Power

50W

Drive motor

brushless DC motor (24V)

Working life

3,000,000

LED indicator

1

Reader windows

2

Power on  state required time

3 seconds

Failure automatically reset time

10 seconds

Working environment

 indoor, outdoor (with shed)

Interface standard RS485/distance≤1200m or TCP/IP.

Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





Functions& Features



1. Designed reasonable and reliable movement, noise, smooth running, and long service life.



2. Access Prompt function:Red and green light prompt the passing information.



3. The programmable gates control state, with a variety of operating modes you can choose,

you can set a one-way or two-way control



4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.



5. The main control panel built small button, the device can be set to run state



6. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a

predetermined time, click stop working automatically, the default reset again after a delay,

and the intensity is very small(2kg)



7. Scour protection function ,when the gate signal is not received, the stick is automatically locked



8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,

swing gates automatic cancellation of this authority back to the initial state.



9. Normally open or closed can be freely adjusted to meet different venue requirements



10. Can be mounted with a variety of reading devices, the receiver relay switch signal



11. Single ,bi-directional swing function, one-way or two-way control personnel access



12. Directly through the management computer for remote control and management, auto-reset delay

automatic reset, the system default is 10 seconds after opening (adjustable)



13. Power failure emergency function after power channel automatically open, closed automatically

after power-on, to meet the special needs of the user and the fire safety requirements
