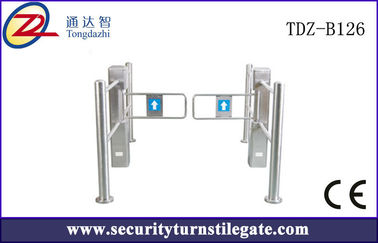

High Speed Swing Supermarket Turnstile with round pillar , CE certification



High Speed Swing Supermarket Turnstile with round pillar , CE certification





Quick Details



1. Cubic column specifications:200 * 180 mm
2. material and color are optinal
3. Material:304stainless steel
4. turnstile manufacturer,factory price
5. OEM welcome



Product Description



TDZ-B126 304 stainless steel, easy way, for use in the supermarket entrance, residential, shopping, reading hall, terminals and other public-way channel, and with power locks wing gates, smart swing gates, tripod turnstile intelligent brake used together.





Technical Parameters



Structure	frame structure/standard stainless steel shell
Production	full CNC laser cutting machine production
Gate opening time	0.2 seconds
Power	50W
Drive motor	brushless DC motor (24V)
Working life	3,000,000
LED indicator	1
Reader windows	2
Power on  state required time	3 seconds
Failure automatically reset time	10 seconds
Working environment	indoor, outdoor (with shed)
Interface	standard RS485/distance≤1200m or TCP/IP.
Operation Place	Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





Functions& Features



1. Designed reasonable and reliable movement, noise, smooth running, and long service life.



2. Access Prompt function:Red and green light prompt the passing information.



3. The programmable gates control state, with a variety of operating modes you can choose,

you can set a one-way or two-way control



4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.



5. The main control panel built small button, the device can be set to run state



6. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a

predetermined time, click stop working automatically, the default reset again after a delay,

and the intensity is very small(2kg)



7. Scour protection function ,when the gate signal is not received, the stick is automatically locked



8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,

swing gates automatic cancellation of this authority back to the initial state.



9. Normally open or closed can be freely adjusted to meet different venue requirements



10. Can be mounted with a variety of reading devices, the receiver relay switch signal



11. Single ,bi-directional swing function, one-way or two-way control personnel access



12. Directly through the management computer for remote control and management, auto-reset delay

automatic reset, the system default is 10 seconds after opening (adjustable)



13. Power failure emergency function after power channel automatically open, closed automatically

after power-on, to meet the special needs of the user and the fire safety requirements







 Our service



Visit our factory free.

Reply your inquiry in 24 working hours.

Professional staff answer your questions in English.

Customized design is available,we can accept OEM & ODM.

Unique problems can be made solution by our professional engineers.

Special discount and protection of our distributors or agents in their area.
