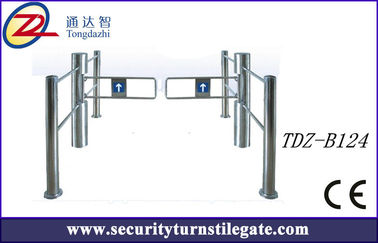

Customized Electronic Turnstile Access Swing barrier gate for magnetic card

Customized Electronic Turnstile Access Swing barrier gate for magnetic card

    • Customized Electronic Turnstile Access Swing barrier gate for magnetic card
    • Customized Electronic Turnstile Access Swing barrier gate for magnetic card
  • Customized Electronic Turnstile Access Swing barrier gate for magnetic card

    Product Details:

    Place of Origin: China
    Brand Name: Tondahzhi
    Certification: CE
    Model Number: TDZ-B124

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD900-1500per piece
    Packaging Details: paper carton and wooden case
    Delivery Time: 5-7 working days
    Payment Terms: D/P, T/T, Western Union, Western Union, MoneyGram, D/A
    Supply Ability: 500 pieces per month
    Contact Now
    Detailed Product Description
    Power: 50w Material: 304# Ss
    Size: ¢168*1050mm Type: Auto



    Customized Electronic Turnstile Access Swing barrier gate for magnetic card





    Product Description:



    The material is standard 304 stainless steel, during the casing within a professional guide tank. and during the

     casing within a professional guide tank. Can be installed in indoor, outdoor with shed, applicable to restrict the

     passing rate of the place, has the count, attendance, current limiting function. The enter close are more wider

     than others. Have a higher traffic capacity, can make motorcycle, bicycle and other small vehicles through,

     also can be used as a barrier-free access.

    Customized Electronic Turnstile Access Swing barrier gate for magnetic card





    Feature of the product:



    1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.

    2. Waterproof, sunscreen, anti-temperature, anti-cold.

    3. Access Prompt function :Red and green light prompt the passing information.

    4. The programmable gates control state, with a variety of operating modes you can choose, you can set a

    one-way or two-way control

    5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.

    6. Small button in the main control panel can be set state of equipment.

    7. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined

     time, click stop working automatically, the default reset again after a delay, and the intensity is

     very small(2kg)

    8. Scour protection function ,when the gate signal is not received, the stick is automatically locked

    9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically

    cancel the access permissions of the user.

    10. Normally open or closed can be freely adjusted to meet different venue requirements

    11. Mount can be used with a variety of reading devices, work when it receive relay switch signal

    12. Single ,bi-directional swing function, one-way or two-way control personnel access

    13. Directly through the remote management computer control and management, automatically reset

    automatic reset delay, the system default is 10 seconds after opening (adjustable)

    14. Power failure emergency function after power channel automatically open, closed automatically after

    power on, to meet the special needs of the user and the fire safety requirements





    Technical:



    1. Structure: frame structure/standard stainless steel shell

    2. Production: full CNC laser cutting machine production

    3. Dimensions: ¢168*1050mm)

    4. Stainless steel thickness: 1.5mm, body 1.2mm

    5. Maximum channel width :500-900mm

    6. Weight:60Kg

    7. Transmission Angle of swing arm:180°

    8. The programmable gates control state, with a variety of operating modes you can choose, you can set a

     one-way or two-way control

    9. Power: 50W

    10. Power supply voltage: AC220 ± 10% V, 50HZ

    11. drive motor: brushless DC motor (24V)

    12. Communication Interface: Standard RS485 interface, distance ≤ 1200 meters or TCP / IP

    13. LED indicator: 1

    14. reader windows: 2

    15. access speed :30-40 / min

    16. power on the prevailing state required time: 3 seconds

    17. failure automatically reset after time: 10 seconds

    18. input interface: dry contact signal or +12 V level signal or pulse width ≥ 100ms DC12V pulse signal,

    driving current ≥ 10mA;

    19. Working environment: indoor, outdoor (with shed)

    20. Temperature: -10 °C ~ 50 °C Relative humidity: ≤ 90%, no condensation



    Customized Electronic Turnstile Access Swing barrier gate for magnetic card



    Structure

    frame structure/standard stainless steel shell

    Production

    full CNC laser cutting machine production

    Maximum channel width

    550-600mm

    Gate opening time

    0.2 seconds

    Power

    50W

    Drive motor

    brushless DC motor (24V)

    Working life

    3,000,000

    LED indicator

    1

    Reader windows

    2

    Power on  state required time

    3 seconds

    Failure automatically reset time

    10 seconds

    N.W.

    60KG

    Range of use

    station, park ,apartment, school, factory etc
