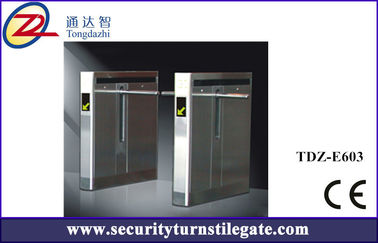

304 stainless access control Drop Arm Barrier swing turnstile with EM cards

304 stainless access control Drop Arm Barrier swing turnstile with EM cards

  • 304 stainless access control Drop Arm Barrier swing turnstile with EM cards
  • 304 stainless access control Drop Arm Barrier swing turnstile with EM cards
304 stainless access control Drop Arm Barrier swing turnstile with EM cards
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-E603
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Delivery Time: 3-4 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1200*160*1000mm Package Size: 1250*210*1050mm
Occasions: Bank,government,railway,airport Channel Width: 600 Mm
Motor: Brushless DC Motor (24V) Normal Life: 3,000,000 Times
High Light:

security barriers and gates

,

biometric access control system


304 stainless Drop Arm Barrier swing access control with EM cards


Quick Details

  • 316 stainless steel automatic drop arm barrier with card reader
  • Channel width:600-900mm
  • 3 pairs of infrared sensor
  • Control panel with counting function,LED display function (optional).
  • Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products



Product Descriptions:



  1. Waterproof, sunscreen, anti-temperature, anti-cold.​​
  2. Access Prompt function:Red and green light prompt the passing information.
  3. Can set a one-way or two-way control
  4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
  5. Small button into the main control panel ,can be set state of equipment.
  6. Anti-pinch, anti bumps function
  7.  Scour protection function ,when the gate signal is not received, arms keep closed
  8. With automatic reset function,if does not pass in the set time,turnstile will get back
  9. Normally open or closed can be freely adjusted
  10. can be used with a variety of reading devices, work when it receive relay switch signal
  11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically



 304 stainless access control Drop Arm Barrier swing turnstile with EM cards 0




Technical Parameters



Material304/316 stainless seel (optional)
FishingBrushed surface (standard) / Polishing surface
Dimension1200*160*1000mm
Channel width600 - 900mm
Drive motorBrushless DC motor (24V)
Power supplyAC220 (110) ± 10%V,50Hz
Working life3,000,000 times
Communication InterfaceRS485 / RS232,Ethernet
Transit Speed30 - 40  passage / minute
Work EnvironmentIndoor / Outdoor (Shelter)
Use PlaceStation,park,apartment,school,factory,bank,building




Customized Features:


  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software
