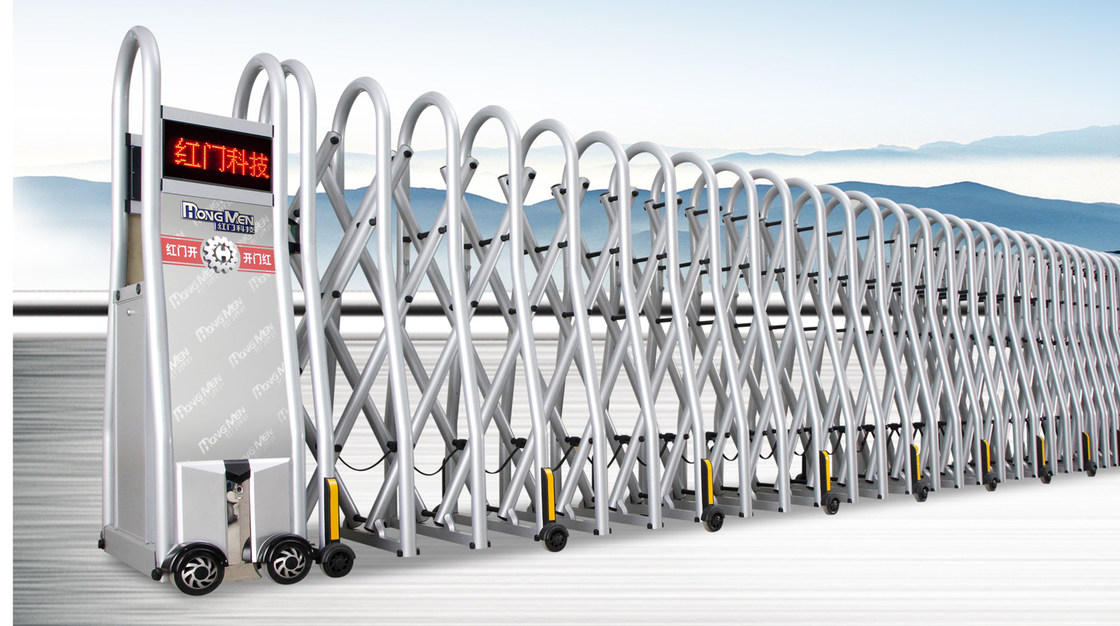

Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor

Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor

  • Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor
  • Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor
Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor
Product Details:
Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: SQMC
Payment & Shipping Terms:
Minimum Order Quantity: L=4m * H=1.5m
Packaging Details: Plywood + Iron Rack
Delivery Time: 10 Working Days
Payment Terms: TT With 50% Deposit, 50% Payable Upon Goods Dispatch
Supply Ability: 25,000m / month
Contact Now
Detailed Product Description
Material: Aluminium Alloy Tubular Profiles Surface Treatment: Powder Coating
Colours: Customized Colours Available Packaging: Iron Rack With Plywood
Control: Wireless / Wired Operating Mode: Motorized
IP Rating: 44
High Light:

Automatic Retractable Gate

,

Electric Folding Gates

Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor







Features:

  1. high quality aluminum alloy
  2. ce certified
  3. multi-language LED display screen
  4. made of high-grade
  5. trackless operation
  6. wireless remote control
  7. intelligent self-align (ISA) motor
  8. smart power outage clutch
  9. anti-collision IR sensors
  10. anti-climb photo cells
  11. small factory
  12. school
  13. private areas
  14. opening not exceed 18m



Specifications:

  1. Main Frame: φ48*1.2mm
  2. Inner Cross Tube: φ48*1.0mm
  3. Voltage: 220V±10% 50/60MHz
  4. Current: 2.5A
  5. Speed: 15M/Min
  6. IP Rating: IP 44





Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor 0



Operation Voltage 220V± 10%, 50Hz-60Hz
Operation Temperature -25ºC to +70ºC
Environment Humidity < 90%
Operation Speed 16m/min
Motor Power Rating 250W
Motor RPM 1400r/min
IP Rating IP44
Insulation Grade F
Speed Reduction Ratio 1000: 1
Remote Distance 50m (empty space)






Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)


Disclaimer:



Hongmen Trading Co., Limited does not have any control of the final use of the goods supplied. We do not warrant the goods to be suitable for any other particular purpose. So far as statute permits and other express or implied term, condition or warranty, whether arising under statute or otherwise, as to fitness, suitability, quality condition, correspondence with description or sample or merchantability of the goods is hereby excluded from the contracted terms.



Trackless Tubular Profiles Automatic Front Door Gate Retractable With Security IR Sensor 1
