Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | WONSUN |
| Certification: | CE, ISO, SGS |
| Model Number: | WST-1201 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Delivery Time: | 3-7 working days after received your payment |
| Payment Terms: | T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc., |
| Supply Ability: | 1000 Sets/Month |
| Size: | 320*250*944.5mm | Material: | 2mm Cold Roller Steel Plate |
|---|---|---|---|
| Arm Material: | Aluminum Alloy | Arm Length: | Max. 6mtrs |
| Open/close Time: | 3s, 6s | Power Supply: | AC 220±10%,50/60HZ |
| High Light: | Car Park Barriers,Automatic Parking Barrier |
||

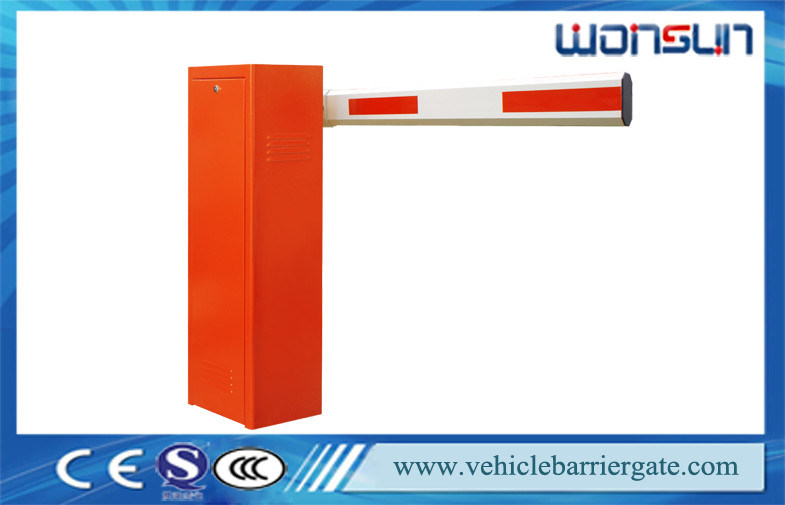

5 Million Operation Times Electric Boom Barrier Gate with Limit Switch
Quick Detail:
Name: Boom Barrier Gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1201 | Straight boom | 6m | 6 seconds |
WST1202 | Straight boom | 4.5m | 3 seconds |
WST12021 | 90 degree, Articulated boom | 5m | 6 seconds |
WST12022 | 90 degree, Articulated boom | 3m | 3 seconds |
WST12061 | 180 degree, Articulated boom | 5m | 6 seconds |
WST12062 | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
Model | WST1201 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and press open/close button but boom barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, boom barrier gate will move but even when it is at right position, the motor still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but boom barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing,boom barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
