| Place of Origin: | China |
| Brand Name: | WONSUN |
| Certification: | CE, ISO, SGS |
| Model Number: | WST-1151 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Delivery Time: | 3-7 working days after received your payment |
| Payment Terms: | T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc., |
| Supply Ability: | 1000 Sets/Month |
| Housing Dimension: | 320 * 280 * 935 Mm | Arm Type: | Straight Arm, Folding Arm, Fence Arm, Optional |
|---|---|---|---|
| Housing Material: | 2mm Cold Roller Steel Plate | Open / Close Time: | 1s, 1.8s, 3s, 6s |
| Power Supply: | AC 220V / 110V | Max Boom Length: | 6m |
| High Light: | Parking Barrier Gate,Automatic Parking Barrier |
||

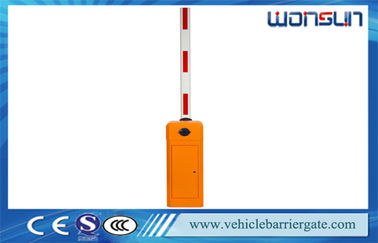

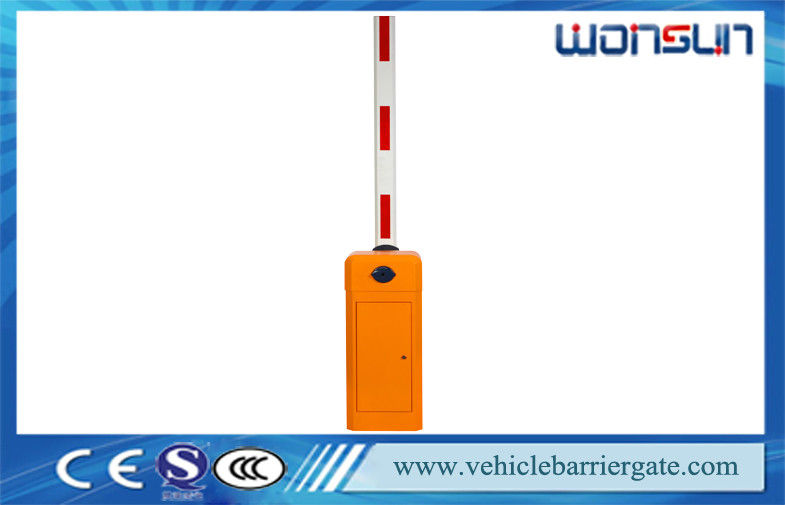

Orange Intelligent Automatic Road Boom Barrier Gate With Limit Switch
Quick Detail:
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WST1151 |
Straight boom |
6m |
6 seconds |
|
WST1151 |
Straight boom |
4.5 m |
3 seconds |
| WST1151 | Straigjht boom | 3m | 1s and 1.8s |
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
| Model | WST-11561 |
| Working Temperature | -35℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Max boom length | 8meters |
| Speed | 1S,3s,6s |
| Net weight | 60kgs |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Our Car Park Barriers Packing List
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
