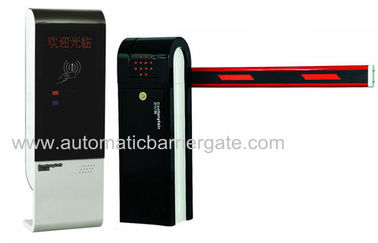

RS485 Intelligent Car Parking System with Image Comparison
Quick details:
1.Database:SQL 2000
2.Communication model: RS485
3.Operation System: Win2000 or XP
4.Image monitor: Two or Four Channel
5.IC/ID user card compatible
6.Multi charging modes
Description:
SJSPA08C employs powerful system,which realizes unattended operation at the entrance, charge at the
exit or central PC. It provides multiple choices for system,ID card system ,IC card system and compatible system of ID card and IC card are available.Both online operation and offline operation are suitable.The system is widely appalicated in living area,bus station,road,school,ect.
Applications:
Bus Station
Exhibition
Subway
Apartment
Factory
Market
Park and so on
Specifications:
|
Reader Communication Mode |
Wiegand |
|
Transfer Mode |
RS485 |
|
Card Type |
IC/ID Cards, Bar-code |
|
Image Monitor |
Two or Four Channel |
|
Operation System |
Win2000 or XP |
|
Database |
SQL2000 |
|
Input Voltage |
AC220V 50HZ |
|
Working Voltage |
AC/DC 12V |
|
Environment Temperature |
-25--+65 degrees |
|
Relative Humidity |
< =95% |
|
Communication Mode |
RS485 |
|
Communication Distance |
1200m |
|
Reading Distance |
50mm-100mm (IC card) |
|
|
800mm-1200mm (ID card) |
|
Card Capacity |
10, 000 |
|
Black List |
10, 000 |
|
Equipment No. |
1- 127 |
|
Enter & Exit Mode |
Multi-entering/exiting, built-in, central Charging |
Competitive Advantage:
1. Image comparison
2. Credentials capture
3. IC/ID user card compatible
4. Blue-tooth long distance card reading (option)
5. Extending valid period without card
6. Barrier status monitor
7. Multi charging modes
8. Preset plate number
9. Anti-bumping and automatic closing
10. Offline /online operation
