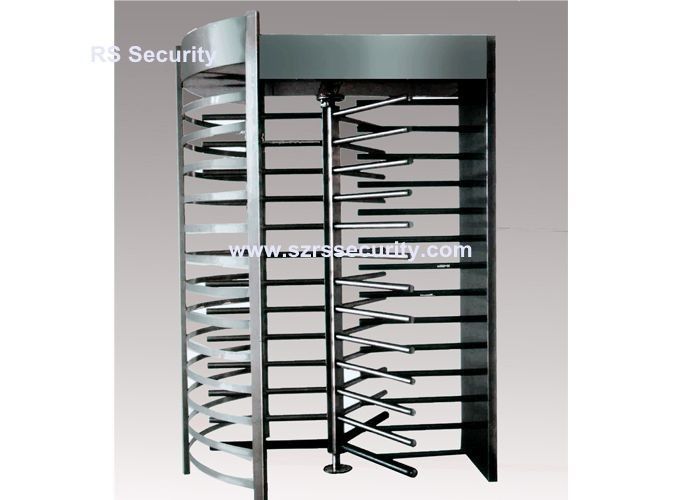

Safety Hotel Full Height Turnstiles Can Be One Way Or Two Way Control Personnel

Safety Hotel Full Height Turnstiles Can Be One Way Or Two Way Control Personnel

  • Safety Hotel Full Height Turnstiles Can Be One Way Or Two Way Control Personnel
  • Safety Hotel Full Height Turnstiles Can Be One Way Or Two Way Control Personnel
Safety Hotel Full Height Turnstiles Can Be One Way Or Two Way Control Personnel
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 998
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200usd
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Full Height Turnstile Product Name: Remote Control Full Height Turnstile
Model: RS 998 Brand: RS Security
Material: 304 Stainless Steel Size: 1630x1500x2300mm
High Light:

automatic systems turnstiles

,

security turnstile gate



Safety Hotel Full Height Turnstiles, Single Or Double Lane Rotor Turnstile Gates


Quick details:

Product Name:Full Height Turnstile
Kind :Turnstile,Security Product
prison full height barrier gate
Brand Name:  RS Security
Model Number:
RS 998
Application: tourist places, prison, community fitness club, school,
Material:  304 stainless steel
Size:  1630x1500x2300mm
Bi-directional access control

Product Description

Functions & Features
1. Compatible with several control devices IC, ID, magcard, bar code
2. Unlocking is quick and reliable.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. The centre rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: The centre rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.
7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface.

Decripition
1. Turnstile can be released in emergency by emergency button or electricity cutoff to ensure personnel safety.
2. Elegant and solid equipment can effectively prevent unauthorized person from intruding. It can be used in unsupervised places.
3. Antireverse rotation function: when turnstile rotates for 60° in reverse direction, make sure each authentication only allow one person to pass.
4. Two-way passing, one-way passing and other modes can be shifted freely according to the demands of different time periods.
Parameter

 Model Item RS 996 RS 995 RS 997 RS 998 RS 999 RS 999-1
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing
(L× W× H mm)
1630× 1500× 2300 1400× 1200× 2300 1630× 1500× 2300 2800× 1813× 2400 2150× 1260× 2300 2210× 1500× 2300
Length of Pole
(out of framework)
610mm 470mm 510mm 610mm 470mm 610mm
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
Driving Force of Pole 3kg
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V± 10%, 110V± 10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Light Indicator Direction indicating
Rotating Direction Single Direction, Double Direction (optional)
Time for Opening 0.2 second
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature 10° C~50° C
Relative Humidity ≤ 90%, no condensation



Competitive Advantage:

  • We are a leading manufacturer of turnstile and speed gate in China.
  • We focus on pedestrian turnstile gates.
  • We keep stock for regular products and we can support small orders. Usually,
  • our lead time is just 3 days.
  • Design products according to customers’ requirements.
  • Credibility: We are SGS certificated Supplier. Our customers are located over 50
  • countries
  • Gratitude: We cherish the business chance you give us and return you with quality
  • products and good service.
  • Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
  • We keep doing new product development. Our goal is to enhance our competitive
  • capacity constantly.
  • Price: very competitive price and good quality products
  • Quality: we do 100% inspection before the shipment.
  • Promise: we are always ready to take the responsibility if any loss caused to our
  • customer due to our mistakes.
