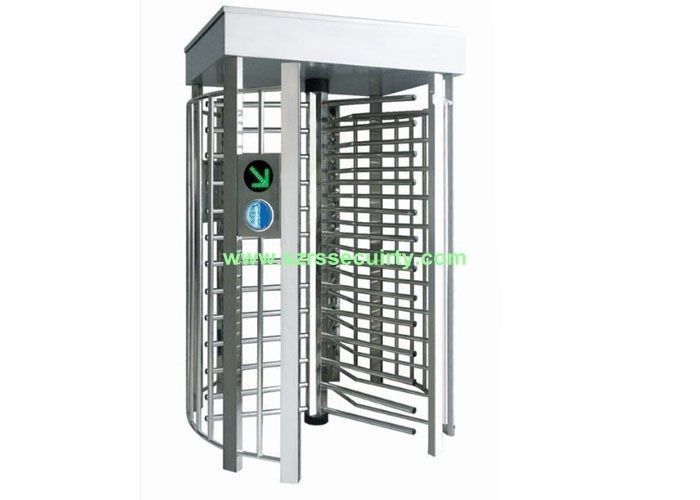

Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate

Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate

  • Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate
  • Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate
Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 997
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10000USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Full Height Turnstile Product Name: Remote Control Full Height Turnstile
Model: RS 997 Brand: RS Security
Material: 304 Stainless Steel Size: 1630x1500x2300mm
High Light:

automatic systems turnstiles

,

security turnstile gate



Dual Waterproof Full Height Turnstile Pedestrian RFID Barrier Single Passge Gate

Quick digitals

Product Name:Single Passge full height turnstile

Model:RS 997

1.The least welding portion polished properly;

2.Steel cut by lase;

3.Original finish kept;

4.Instrusion and safety;

5. heigh security,low noise,rust-proof.



Our series full height turnstile product range consists of several models that all offer excellent security control and can be installed indoors or outdoors depending on their type. Our full height security turnstiles, suitable for controlling unsupervised areas, are available in a wide range of finishes and configurations to suit almost all buildings and environments.





Technical parameter:



1 Model Item
2 Voltage AC  220V/110V± 10%
3 Frequency 50/60Hz
4 Current 3A
5 Control  circuit: DC24V
6 Power  consumption 40W
7 Working  temperature -20° C~60° C
8 Working  humidity 0~95%RH
9 Maximum  bearing  capacity 80kgs
10 Bar  length 550mm
11 Voltage AC 220V/110V±10%
12 Frequency 50/60Hz
13 Current 3A
14 Control circuit: DC24V
15 Power consumption 40W
16 Working temperature -20°C~60°C
17 Working humidity 0~95%RH
18 Maximum bearing capacity 80kgs



Function:


1. Single/double walkway---controlled in one direction or both

2. A valid lock action can allow one passage at one time Normally open---the machine will unlock when a valid signal is received

3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.



4.All the system runs stable with little noise and no mechanical impact
standard port-RS485

5.Control panel with count and LED digital function

6.Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing

7.situations where need single-direction control such as market club film theatre gymnasium subway airport customs and etc. It can be divided into Vertical



8.Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency.



Optional Function:

1.Stainless steel Material :304 stainless

2.Production frame : impact molding /Polishing&grinding/filament drawing.



3. The turnstile controller with counting function, LED digital display function.



4. Sound, light alarm function: with trespassing, trailing alarm.

5.Operation Motor : Brushed motor / Brushless DC motor / Servo motor.



company information



All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232 line. The unique dropping arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
