Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 995 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 10000USD |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |
| Series: | Full Height Turnstile | Model: | RS 998 |
|---|---|---|---|
| Brand: | RS Security | Material: | 304 Stainless Steel |
| Size: | 2600L*1350W*2350H Mm | Certificate: | CE FCC RoHS SGS |
| High Light: | automatic systems turnstiles,security turnstile gate |
||

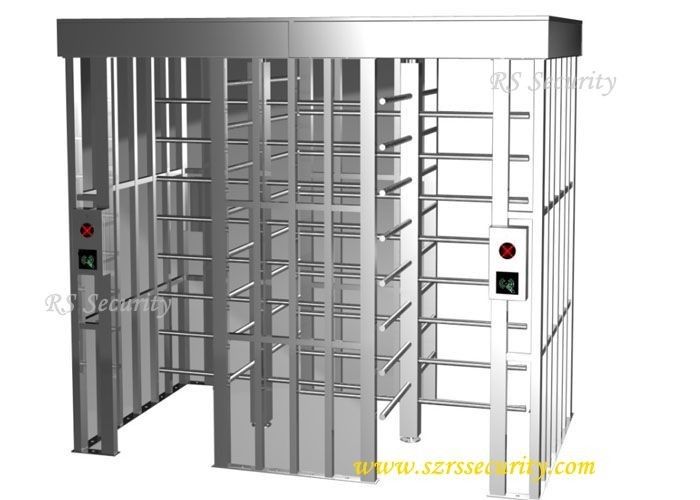

304 stainless steel high safety full height turnstile barrier gate
Product Name:Dual Passges Full Height Turnstiles
Model: RS 995
1.Brushed
2.304 grade stainless steel
3.RFID access con
waterproof
run smoothly
low noise
full height turnstiles.full height turnstile,barrier gate,tripod turnstile,parking system,access control,automatic turnstile,time attendance,waist height turnstile,roadway barrier
2. Technical Information:
|
Technical date
|
|
| Material | 304 Stainless Steel |
| Specification | 2600*1350*2200mm |
| Drive motor | DC 24V brush motor |
| The width of the passage | 685mm |
| Pass direction | one or bi-directional |
| Work environment | Indoor or Outdoor |
| Work temperature | -10°C~70°C |
| Relative humidity | ≤90%, no condensation |
| Time of opening/closing | 0.2S |
| Transit speed | 40 People/minute normal open , 25-30 people/minute normal close |
| Reset time after break down | 10s |
| Normal work life | 3000000 times |
| Communication interface | RS485 |
| Input interface | 12V pulse signal with pulse width >100ms, drive current >10mA |
|
Main Features&Function
|
|
| 1.Unique two-way anti-reverse function. | |
| 2. Programmable device's operating status through the built-in small press plate on control board | |
| 3. Anti-rushing function ,when the gate signal is not received, the turnstile arms locked automatically | |
| 4.The center rotor will be set free (default) or locked (optional) automatically when the power is off. 5.Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s). |
|
| 5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s). | |
| 6. The turnstile can work with door access control system/ consumption system /ticket system/biometric recognition system/ ESD system and so on. | |
| 7.Can be unidirectional or bidirectional control of personnel access. | |
| 8. Can manager and long-range control the turnstile directly by managing the computer. | |
|
Extensible functions:
|
|
| 1. LED indicator light. | |
| 2. Box house can lengthen, can make custom design | |
| 3.Normally open or closed can be adjust to meet the requirements of the different place. | |
Feature
This item is designed to provide unsupervised access control for office or building.
1. A Self-centered mechanism with hydraulic damping to ensure
2. Complete romation of the tripod head to rest position
3. Temp. Range: -5deg to 55 deg. Centigrade
4. Power Consumption: 50 watts
5. Direction of entry: Bi-direction/ Unidirection (Controlled and free rotation)
6. This is compatible to any access-exit control/attendance /pay
7. Roll system /device
8. It has side handrail to prevent forced side entry of persons
9. Net weight is around 150KG
10. Alarm funtion of illegal entrance and follow
