Bi-directional Full Height Turnstiles Single Or Double Way Optional



Bi-directional Full Height Turnstiles Single Double Channel Turnstile Gate

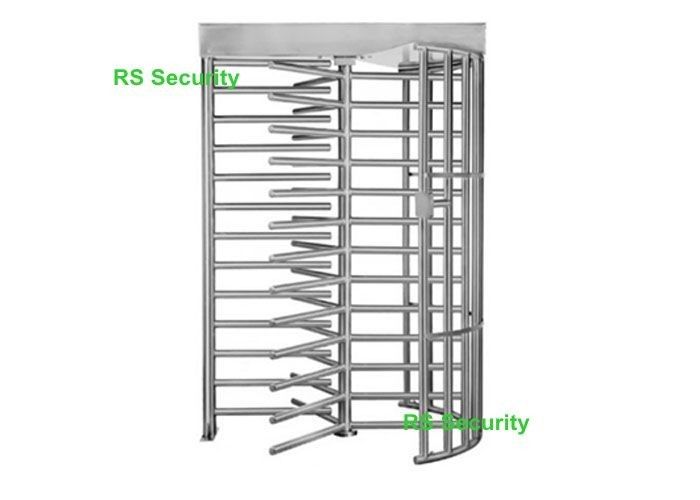

Product name: Single Channel full height turnstile





Quick details:



Auto full height turnstile



waterpoof barrier gate



run smoothly full height gate



Brand Name:  RS Security



Model Number: RS 997



Application: tourist places, prison, community fitness club, school,



Material:  304 stainless steel



Size:  1630x1500x2300mm



Bi-directional access control





1. Product Descriptions:



Three-arm full height turnstile: Oblong top cover; single passageway, detachable;  easy to transport.



 The housing is made of high quality stainless steel, and all the internal parts are with antirust and



antiseptic treatment, therefore, the turnstile is durable. The whole machine works stably, mute, with



low power consumption, energy conservation and environment protection.



With fully-auto structure; after turnstile receives legal signal, the arms will rotate forward a certain



angle to remind people to pass; after pushing forward the arm, the arms will start to slowly rotate at



120°to finish one passing action; turnstile works stably, safely, and reliably, And the turnstile is with



various intelligent alarm signals.



With large hinder area can achieve one time to pass one person effectively, and it's suitable to be



used at the smaller visitor flow rate and high security required occasions.



At the low-temperature environment, can be customized to install the constant temperature systems



in the turnstile according to the requirement of customers.



Provide the control software for human-machine interface and SDK protocol freely. It can achieve



batch control and debugging function conveniently and the expansibility is very strong.





2. Framework Specifications:





Framework: 304 (Standard) / 316 grade stainless steel

Thickness of Ply: 1.5mm (Standard) / 2.0mm

Finishing: Brushed surface (Standard) / Polishing surface

Arm Length: 500~700mm

Arm Diameter: 38mm (Standard) / 48mm

Max Tolerance of Arm: 30kg

Driving Force of Arm: 3kg



3. Electric Specifications:



Power Voltage: AC220V / AC85~230V

Operation Voltage: DC24V

Operation Current: 3A / 5A (Max)

Driving Motor: Brushless DC motor

Communication Interface: RS485 (1CH) /



RS232 (3CH); Available to CAN BUS and Ethernet (Optional)

Control I/O: Relay Out (6CH) / Level Input (4CH)

Transit Speed: 20~35 passage / minute

Temperature: -20C~60C

Work Environment: Indoor/ Outdoor (Shelter)

Traffic-light Indication



4.Product functions and features:



1.stainless steel machine case;

2.standard interface which easy installs external reading card equipment etc;

3.access way can be adjustable;

4.infrared detection,illegal broke in,followed alarm,anti-clipping function etc optional;

5.an emergency control the boom to rebound;

6.external dimension:2150mm×1500mm×2300mm

7.reading and writing way:IC card,ID card,mag card,bar code reader.





5. parameter





Material	304 stainless steel	Input voltage	220V AC220±10%
Size	1630x1500x2300mm	Are length	650mm
Net weight	50kg/unit	Arm diameter	38mm
Motor	24V DC brush	Cooler fan	Optional
Communication   interface	RS485	Thermostat	Optional
Transit speed	30-40 people/minute	Service life	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level   signal,
Clear passage width	550mm	Work environment	Indoor and outdoor   (shelter)
Number of led lamp	2pcs	Model	RS 997





6.Competitive Advantage:



We are a leading manufacturer of turnstile and speed gate in China.



We focus on pedestrian turnstile gates.



We keep stock for regular products and we can support small orders. Usually, our lead time is just



3 days.



Design products according to customers’ requirements.



Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries



Gratitude: We cherish the business chance you give us and return you with quality products and



good service.



Professional: We have been in this business for more than 8 years. We have a strong professional



team with various experiences.



We keep doing new product development. Our goal is to enhance our competitive capacity



constantly.



Price: very competitive price and good quality products



Quality: we do 100% inspection before the shipment.



Promise: we are always ready to take the responsibility if any loss caused to our customer due to



our mistakes.
