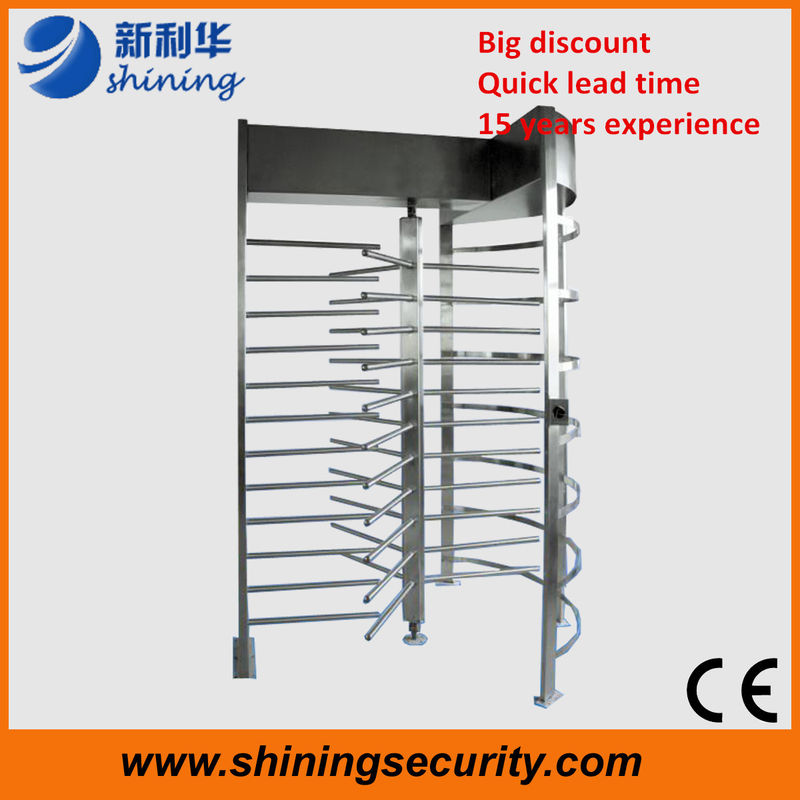

RFID access control full height turnstile barrier gate

Parameters:

1. Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz

2. Power Consumption: 100W

3. Temperature: -15 to 60 degrees

4. Humidity: <95%, without concretion

5. Passage Width: 600mm

6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)

7. Arm Open/Close Time: 2s

8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA

9. Communication Interface: RS485 (Distance: <=1200m)

10. Working Environment: Indoors or outdoors with shed

11. Arm Turning: Uni-direction or Bi-direction

12. Material: 304 stainless steel

13. Dimension: 2530x1450x2300mm

Main Functions：

1. Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically

2. Bi-direction passing or uni-direction

3. When power off, arm will be locked automatically.

4. Self-lock function: arm will be locked automatically after passenger passing.

5. 4 arms are always closed with each turning 90 degrees

6. Standard interfaces are convenient for connection with different readers which can send relay signal

7. RS485 interfaces can connect turnstile with computer directly

8. Stable running with little noise.

Who we are?

Shining Tech(Shining International Tech Limited) is one of the leading designer and manufacturer of the parking barrier,

pedestrian barriers and turnstile with past 15 years experience.

We have our own in-house facility for research, development, design, production and sales with CE certificate

RFQ:

1, Guarantee and after sale service?

We have 1 year quality guarantee. Our well-trained and passionate sales and professional engineers can provide you with timely help.

2, Lead time?

For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For custom-made package or logo, 3-10 working days longer

3, Payment terms?

TT and western union are available. Our company has already joined the trade assurance,

which can highly protect your order security.

4, Shipping terms? And how long does it take?

As our products are big volume and heavy duty, we suggest you to ship by sea.

You can choose your own shipping forwarder. It normally takes 7-60 days, which depends on different countries.

5, Packaging?

Carton box.

6, Do you provide OEM service?

Yes, we can offer OEM services as follows:

We can customize barrier gate according to your needs.

We can print your logo on barrier gate, and customize retail box packing and other things.

7, What are your services?

For all your inquiries, response can be made within 24 hours.

Our company is equipped with excellent engineers and sales.

We can provide you with first quality products and the best price.

OEM services are offered. Customized logo and retail box packing can be made by us.

Our experienced engineers can train you how to use our products.

Business hours: 8:30—12:00AM, 1:30—5:30PM, Mon—Fri

8:30—12:00AM, Sat

Shining--Stephen Chow
Dawo Industrial Park, Guanlan, Shenzhen, China.

www. shiningsecurity.com - stephen.shining @shiningsecurity.com

Tel: +86-755-8939-8806 , Cel: +86-18154460319 fax: +86-755-8939-8986 Skype: stephen.shining

Whatsapp: +8618154460319
