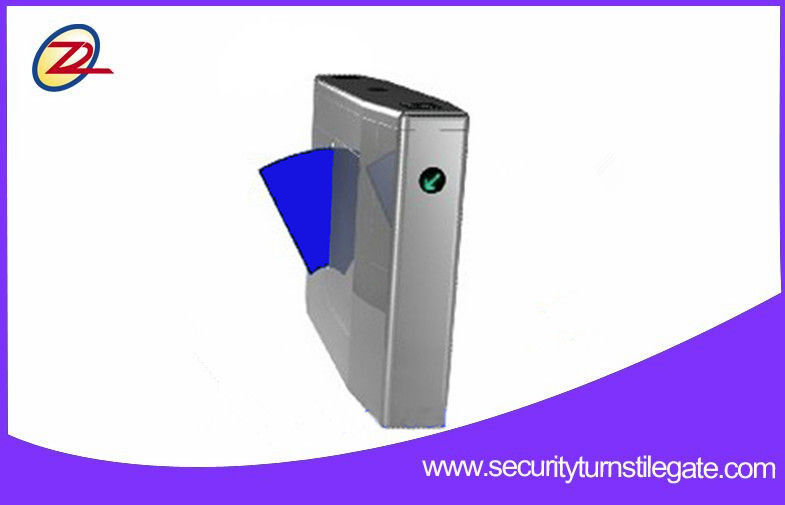

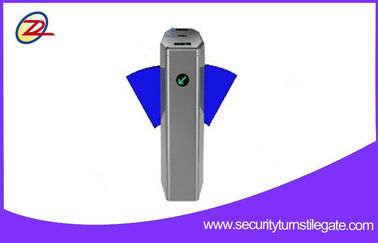

Fingerprint Flap Barrier Gate / Rfid Card Reader Flap Turnstile for Hanicap Lane

Fingerprint Flap Barrier Gate / Rfid Card Reader Flap Turnstile for Hanicap Lane

  • Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane
  • Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane
Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-Y205
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1200*300*1000mm Channel Width: 600mm - 900mm
Normal Life: 3,000,000 Times Temperature: -10℃ - 50℃
High Light:

Flap Barrier Turnstile

,

Pedestrian Turnstile Gate


Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane

Quick Details

  • ​Can be wide channel from 600 - 900mm
  • 3 pairs of infrared sensor(standard) can install more (optional)
  • Indoor and outdoor used,304 stainless / 316 stainless steel (optional)
  • Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products



Product Descriptions:


  1. Waterproof, sunscreen, anti-temperature, anti-cold.​​
  2. Access Prompt function:Red and green light prompt the passing information.
  3. Can set a one-way or two-way control
  4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
  5. Control panel with counting function,LED digital display function (optional)
  6. Pinch function, anti bumps function
  7. Scour protection function ,when the gate signal is not received, arms keep closed
  8. With automatic reset function,if does not pass in the set time,turnstile will get back
  9. Normally open or closed can be freely adjusted
  10. can be used with a variety of reading devices, work when it receive relay switch signal
  11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
  12. Sound,light alarm functin : with trepassing,trailing alarm
  13. Fault detection and alarm function




Technical Parameters


Name

Flap Turnstile

Model

TDZ-Y205

Housing Size

1200(L)*300(W)*1000(H) mm

Passing speed

30--40 persons/min

Net  Weight

70kg

Working  temperature

-25°C--+60°C

Gross Weight

75kg

Relative  humidity

≤90% non-condensing

wing  width

≤285mm

Max channel width

≤600mm

Drive current

≥10mA

Communication distance

≤1200m

Housing  Material

304 grade stainless steel optional

Power supply voltage

AC220V±10V, 50±10HZ

Control  type

IC/ID/Barcode control
accepted

Drive motor

DC motor 200w 24v

Machine center

imported Germanic
technological motor

Working mode

one directional or
bi-directional optional

Communication Interface

RS485/RS232

Working environment

indoor or outdoor

(with a tent over)



Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane 0



Fingerprint Flap Barrier Gate  / Rfid Card Reader Flap Turnstile for Hanicap Lane 1


Customized Features:



  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software
