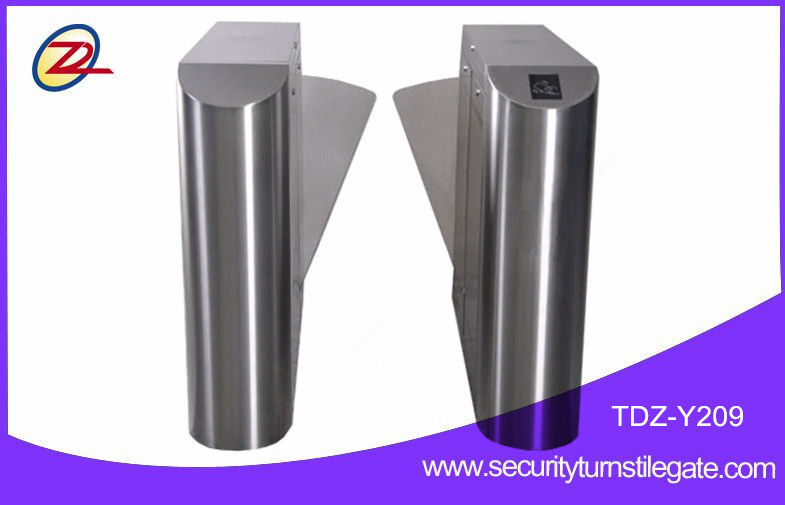

Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner

Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner

  • Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner
  • Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner
Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-Y209
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1200*300*1000mm Channel Width: 600mm - 900mm
Power Supply: AC 220 ± 10%V,50Hz Normal Life: 3,000,000 Times
High Light:

Flap Barrier Turnstile

,

Pedestrian Turnstile Gate



Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner



Main Features & Function



  1. Smartcard reader compatible with a variety of card such as IC and ID card.
  2. Can be expanded to automatic identification system, realizing function of access control,pedestrian flow control,attendance check or fare collection.
  3.  Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
  4.  Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
  5.  LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
  6.  Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments
  7.  Provide audible sound prompt and information display function.
  8.  The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)





   Technical Info



 Model TDZ-Y209

Voltage

AC 220V/110V±10%

Frequency

50/60Hz

Current

3A

Control circuit:

DC24V

Power consumption

40W

Working temperature

-20°C~60°C

Working humidity

0~95%RH

Protection grade

IP44

Net weight

70kg

Dimension

1200 *300 * 1000mm



 Project Case



Access Control Flap Barrier Gate , Pedestrian Flap Turnstile with Fingerprint Scanner 0



  Shipping way

  1. Fast way: by express courier, such as DHL, FeDex, UPS, TNT, EMS.
  2. Cheap way: by air, by sea shipment.
  3. Cheap way (small package): By China Post, should take 15-70days.





Our Services





Warranty:



   One year Warranty, from the date of delivery, a lifetime technical support.





Feedback quickly:



   1. 24 hours online service and reply your inquiry within 8 hours.



   2. We could provide Online supports for you when need supports on testing.





Advantage :



   1.One stop security solution provider, can help you save time and costs.



   2.Good quality with competitive price, offer OEM and ODM service.



   3. Professional technique supports and great after sell service.



  4. Fastest delivery and safe shipping way.





Payment terms:



   T/T, Western Union, cash etc.,





We warmly welcome you join us to achieve a win-win situation.
