Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate

Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate

  • Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate
  • Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate
Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate
Product Details:
Place of Origin: china
Brand Name: TDZ
Certification: CE
Model Number: TDZ - Y 219
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 - 1350 / Piece
Packaging Details: paper carton/wooden case
Delivery Time: 5-7 working days after ordered
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 pieces / month
Contact Now
Detailed Product Description
The Maximum Channel Width: 550 - 600 Mm Size: 800*300*1000 Mm
Power Supply Voltage: AC220 ± 10%V, 50HZ Working Temperature: -15°C ~ 50°C
Thick Of Steel: 1.5mm Communication Interface: RS485 Electrical Standard Or TCP/IP
Material: 304 Stainless Steel Weight: 90 Kg
High Light:

Flap Barrier Turnstile

,

Pedestrian Turnstile Gate



Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate





TDZ , your best security solution partner



product :



TDZ-Y219 :  Flap Turnstile

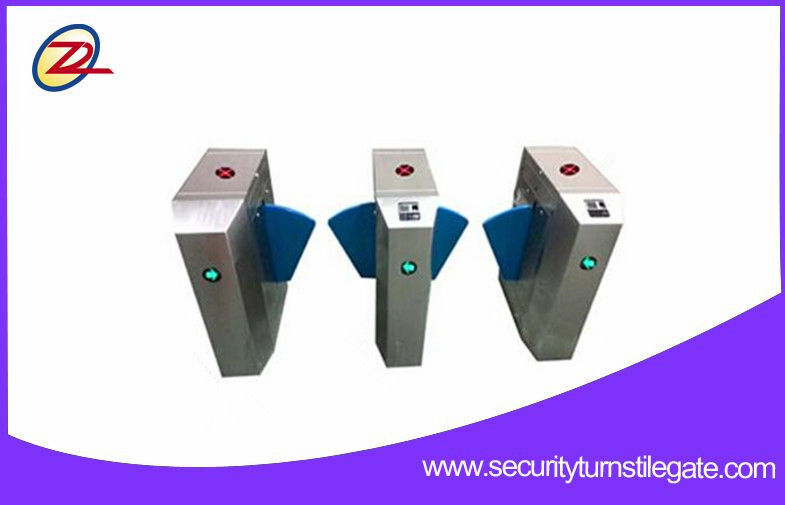

Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate 0





1 . Flap Turnstile Descriptions:



The turnstile has the ability to control access smoothly and effectively.The machine is well in design, rustproof, durable and can resist external destroy.


Flap turnstile can be divided into fully automatic flap turnstile and manual flap. Fully automatic product can finish any work by power. The flap arm will automatically open when it is powered off. And the flap will automatically be closed when power is turned on again.



Manual flap has no controller, Do not have any related to electrical parts .

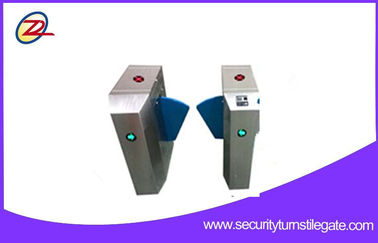

Smart security turnstile Flap Barrier Gate / Pedestrian Turnstile Gate 1





2 . Flap Turnstile Technical Parameters



Framework 304(standard)/316 grade stainless steel
Dimensions    Vertical turnstile:600*280*1000mm
Bridge turnstile:1200*300*1000mm
Channel Width 600mm
Weight 70kg.
Operating Mode one-way or two way control
Power supply voltage AC220 ± 10%V, 50HZ

Motor

0.5NM/24V(Fully Automatic)

Interface standard RS485/distance≤1200m or TCP/IP.
Gate opening time 0.2 second
Transit speed 30-40 persons per minute
Working environment indoor or outdoor
Temperature -10 Celsius  to 50 Celsius
Relative humidity :≤90% no condensation

Protection Grade

IP54

Colour

Stainless Steel Brushed / Powder Coating(Optional)
Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





3 . Flap Turnstile Functions& Features



1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.

2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).

3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).

4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

5.Smart card reader compatible with a variety of card such as IC and ID card.

6.Can be expanded to automatic identification system,realizing function to access control,

pedestrian flow control,attendance check or fare collection.

7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.

8.Control panel with count and LED digital function.
9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.









Why us



1.TDZ can provide channel solution you need,as our turnstile are compatible with kinds of  different systems

2.We always focus on R&D new products,updated our turnstile and system,make them more stable and

sensitive

3.12 month warrenty since shipping(not including human factors),life time technical support

4.Professional turnstile manufacturer save you time and reduce your cost

5.Cooperated with best shipping forwarder,provide you Fastest delivery and Safe shipping way

6.All the payments terms and trade terms are optional
