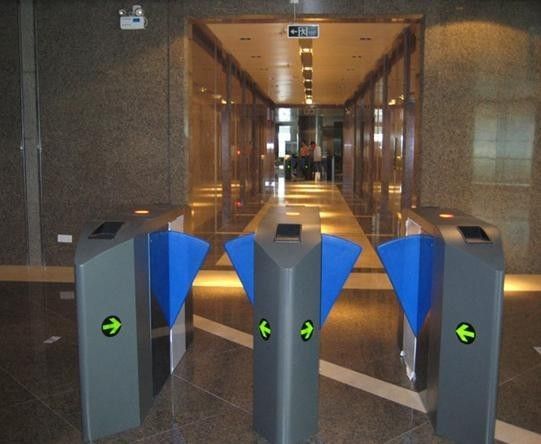

YA-18 Flap Barrier Gate Barrier Project for Entry

Flap barrier is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier. This product is well-processed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.

Technical specification:

Materials:        Housing:  304 grade stainless steel or Painted Steel

                       Flap door: Acrylic glass, or Resin, or PVC

Power supply:    AC85-240V,   50Hz/60Hz

Motor:          DC24V

Input interface:   Dry contact signal or 12V electric level signal or DC12V pulse signal with width of more than 100ms, Driving current: > 10mA

Normal life-span:       3million times

Communication interface:    RS485(standard distance less than 1200metres)

Transit speed:     30-40 persons/min

Time for opening or closeing:   1 seconds

Starting time after power is on:   3 secconds

Automatic reset time after fault:   10seconds

Working environment:    Indoor, outdoor( with a tent over)

Working temperature:     -10℃—50℃

Relative humidity:    ≤90%  no condensation

Function features:

1. Self-examine function:It is convenient for users to maintain and use.
2. Compatibility:Several readers devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine ect.)
3. Standby Intrusion:When the barrier is on standby, an intrusion is detected as soon as there is an obstruction of cell.
4. Counter Direction Intrusion:The intrusion is declared when a person is authorized in a direction while a passage in the other direction is in progress.
5. Overtime:If never detect any passing after authorization 7s, Flap barrier will start alarming till 10s will cancel this passing authorization.
6. ‘Stay’ Intrusion:After the authorized and detected have gone into the access but don’t detect finish the passage. The barrier will keeping open and waiting 25s.Then barrier will output  “stay” intrusion and close in 30s.Unless passenger block the safety detection cell, the arms will close when he leave the detection cells.
7. Sophisticated sensor system prohibites unauthorized entry and aciviates the in-built alarm function.
8. Normal Open:This Mode Chosen for faster throughput, Here Flaps remain Normally Open and Closes only when access attempted without authorised signal from Access Controller.
9. Normal Close:Flap remain Closes, Opens only on authorised Signal from Access Controller.
10. Single Way:Enabling this mode allows only Entry or Exit ( One directional) access attempts from other is alarmed.
11. Double Way:Same Barrier is used for Entry and Exit
12. Emergency Open:Flap Opens, irrespective of any condition ( Fire Alarm Input)
13. Emergency Close:Flap Closes and Remain, untill next Command of Emergency Close
14. Disabled access:900mm passage width consists of double wings to allow wheelchair access.

Extendable functions:

• Counter(optional)
• The length of the housing (length 1.2m, 1.4m, or 1.6m are optional )
• The material of flap arm (acrylic glass, resin, PVC etc. optional)
• The colour of the flap arm (red, blue, yellow, colourless, etc.)

Main structure and configuration:

Single mechanism type(One housing with one flap mechanism in it):

1 standard housing

1 flap arm

1 main control board

1 transformer

1 electromotor

1 set of core and transmission part

Infrared sensor(Hall switch, the quantity is different according to different model)

1 annunciators

   1 direction indicator

Double mechanism type(One housing with two flap mechanisms it it):

1 standard housing

2 flap arms

2 main control boards

2 transformers

2 electromotors

2 sets of core and transmission parts

Infrared sensor(Hall switch, the quantity is different according to different model)

2 annunciators

  2 direction indicators


Applications:

Public transport

Exhibition centres

Gyms and fitness centres

Museums

Factories and enterprises
