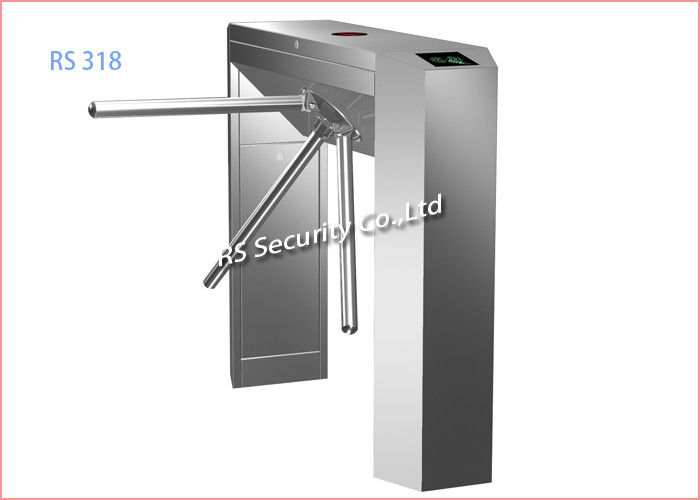

Fingerprint Security Waist Height Turnstile Attendance Railway Station Barrier

Feature:

1)Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

2) If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.

3)Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

4)Turnstile can be configured to be bi-directional or uni-directional.

Housing is locked with special key to avoid tampering.

1. tripod turnstile Functions

1) The tripod turnstile has fully rainproof stainless steel housing, processed by numeric

control punching and laser drilling, novel and elegant.

2) The tripod turnstile has unique mounting surfaces (for the installation of card reader

and indicator light, etc.), ensuring simple and convenient installation of the turnstile control

equipment of system integrators.
3) The interior module of the tripod turnstile has a cushioning device for automatic regulation

of hydraulic pressure, which helps to realize low noise, no impact and automatic decelerated

returning to home position during operation of the turnstile. The finish of the interior module

has been treated by yellow dichromate plating.
4) Programmable turnstile control is available, for one-direction or bi-direction control (to be set

by the user).

5) The base cover can be opened using a key, therefore it is convenient for the user to install it

. There are card reader supports at both sides of the turnstile, and a 40CM*18CM mounting plate

, for the mounting of controller, is fixed at one side of the housing.

6) The tripod turnstile base is fixed with four 10MM expansion bolts.

2. tripod turnstile Technical Parameters and Configuration:

Housing: 1200*280*980;

Tripod Bar: Length 480 mm, Diameter 40 mm

Power Supply: Single-Phase AC220V, 3A, 50/60Hz

Control Voltage: DC24V, Power Consumption: 40W

Electromagnetism: No Residual Magnetism, without Magnetization

Buffer: Hydraulic Pressure Reset Cushioning, without Bumping Noise

Operating Ambient Temperature Range: -20°C~60°C

Operating Ambient Humidity Range: 0~95%RH

Net Weight: 45kg

Gross Weight: 50kg
