Place of Origin: | China(mainland) |
Brand Name: | RS Security |
Certification: | ISO,FCC,SGS,RoHS,CE |
Model Number: | RS 418 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | 1200USD |
Packaging Details: | wooden box |
Delivery Time: | 3-8workdays |
Payment Terms: | TT |
Supply Ability: | 3000pcs/month |
Series: | Tripod Turnstile | Product Name: | Bridge Butterfly Tripod Turnstile |
---|---|---|---|
Model: | RS 418 | Brand: | RS Security |
Material: | 304 Stainless Steel | Size: | 1200*300*980mm |
High Light: | automatic systems turnstiles,turnstile gate systems |

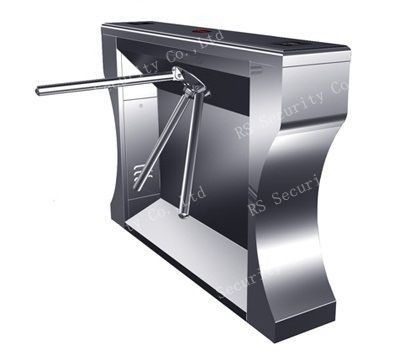

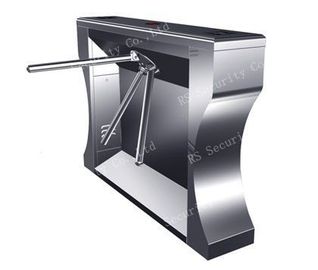

Product Name:Waist Height Turnstiles
other name:tripod turnstile
Model:RS 418
Acero inoxidable 304
Seguridad torniquete
LED display
Integrated with card,fingerprint,bar
RS 818 Torniquete is made of 304 stainless steel, and it's rustproof, durable, and can resist external destroy. Its structure of cuboid framework and pole not only provides people with civilized and orderly transit manner but also prevents the illegal in and out effectively. Meanwhile, in the emergency, the middle arm can drop the pole promptly.
Special Features
1. Being compatible wth serveral control devices IC ,ID, magcard, barcode, fingerprint etc.
2. Smoothly operation, low noice
3. Unlocking is quick and reliable.
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. Auto-drop-arm function:the middle arm will drop automatically(default) or free passing(optional) when power is off.
6.Emergency-escape function:the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not.
7. Several working modes are optional, namely two-direction card reading for limiting flow capacities,or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass
8. Counting Function of the controllor, LED figure display function (optional)
9. Memory Function attached in the controllor
10. With standard input, output interface, it's best choice for system integration buyers.
Technical Parameters
Housing material | 304 stainless steel |
Torniquete tamanho | L1200*W280*H980mm |
Arm length | 510mm |
Net weight | 57Kg |
Power | 24V DC |
Voltage | AC85-250V |
Frenquency | 50/60Hz |
Communication interface | RS485 |
Input interface | Dry contact signal/12V signal/DC 12V |
Normal life-span | 3 million |
Transit speed | 40 persons/min |
Working environment | Indoor/outdoor |
Working temperature | -10C to 50C |
Relative humidity | ≤90% no condensation |
Competitive Advantage:
1. For all your inquires about us or our products, we will reply you in detail within 24hours.
2. We have engineers who has the experience of big turnstile engineering projects to help you solve all theproblems of technical.
3. Delivery Support:
Monthly capacity in our factories reaches 60,000 sets, while we accept the 5-set MOQ. With enough stock, we can arrange the delivery at once, or three days for volume orders.
Technical Support:
Having gathered a team of hi-tech talent, marketing elite and management talent, we employ 150 staff, including a doctor, a technology expert, 6 senior engineers and 9 development engineers.
After sale support:
Warranty time: 12 months
