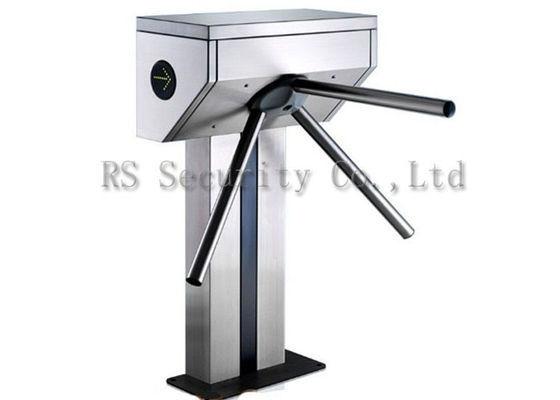

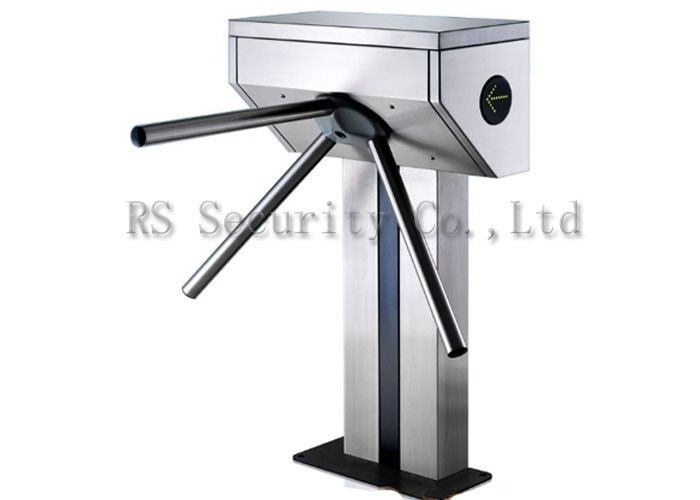

Waist Height automatic systems turnstiles Tripod Pedestrian access gates

Waist Height automatic systems turnstiles Tripod Pedestrian access gates

  • Waist Height automatic systems turnstiles Tripod Pedestrian access gates
  • Waist Height automatic systems turnstiles Tripod Pedestrian access gates
Waist Height automatic systems turnstiles Tripod Pedestrian access gates
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 218-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Place Of Origin:: CN;GUA Material:: SUS304
Normal Work Life:: 3 Million Times Weight:: 59KGS
Power:: AC220V±10% Certificate:: CE FCC SGS RoHS
High Light:

automatic systems turnstiles

,

security turnstile gate





Swipe Card Waist Height Turnstiles Fingerprint Access Control System





Specifications

RFID&Fingerprint vertical tripod turnstile
Waterproof IP54
semi automatic turnstile
SUS304 Stainless steel
with controller

Stainless steel tripod turnstile/ security turnstile gate/ access control automatic barrier gate


Introduction in brief
1. Running stablely without noise and mechanical impact.
2. The passing person number of the persons can be set.
3.Several ways of working molds for your demand chosen.
4. Bi-direct Automatic Pedestrian Fastlane Tripod Turnstile Price ion, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
5. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not.
7. The standard electrical interface connected with various kinds of reader and writer equipment.
8. All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
9. The number of the persons passed by can be counted automatically which can also be displayed in LED.
10. Beam can be lifted and fall when power is cut-off.
11. The function with or without card-reading memory cab be set according to your demand.
12. Self-check and alarm for convenienting to operate.




Product Description

1. Fingerprint and RFID Semi automatic bi-direction vertical tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems; they could be integrated 4. with multiple devices like card and fingerprint readers. Meanwhile, they are equipped with specialized    interface for firefighting linkage.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.




Specification



Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28°C-60°C
Operating Humidity 5%-85%
Working Environment Indoor/Outdoor(shelter)
Rated Power 60w
Flow Rate 25-48 passage/minute
Ingress Protection IP54
Casework Material USU304
Pictogram Indication YES
Control System Input controlled by dry contact
Emergency Button Input YES
Dimension 52CM*98CM*28CM+ Arm Length 50CM
Package Dimension 60CM*108CM*38CM
Net Weight 34KG
Gross Weight with Package 40KG
Optional Function

Alternative Material or shape,

third-party access control integration,

ticket system integration, passage counter








Features

1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
8)Counting the passing people number automatically, and with LED display
9)Direction indicator function, showing passing or prohibiting for the people
10)Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.
13) Self resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.
14) RS485 Communication function.
