Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 518 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1200USD |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |
| Series: | Tripod Turnstile | Product Name: | Automatic Tripod Turnstile |
|---|---|---|---|
| Material: | 304 Or 316 Stainless Steel | Chassis Thickness: | 1.5-2.0mm |
| Certificate: | CE FCC RoHS SGS | Size: | 1200*280*980mm |
| High Light: | automatic systems turnstiles,turnstile gate systems |
||

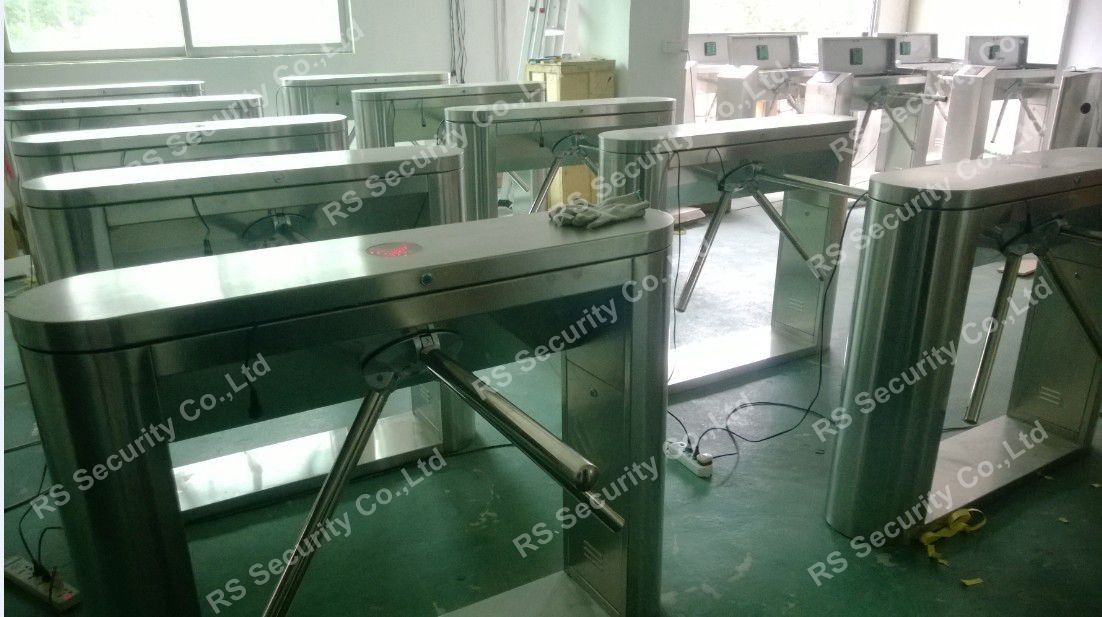

Product Name: Security Tripod Turnstile
Model: RS 518
tripod turnstile with counter
1). Built-in Counter
2). 600mm Passage width
3). 304# Stainless steel
4). CE Approval
auto tripod turnstile,access control system,barrier gate,roadway barrier,waist height turnstile
Features & Functions
(1) Running stably without noise and mechanical impact.
(2) The passing person number of the persons can be set.
(3) Several ways of working molds for your demand chosen.
(4) Bidirection or one direction permitted, one forbidden, or one direction charged,
one for free, and all the working molds set by the buttons in the main control board.
(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users
and the request of fire protection.
(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.
(7) The standard electrical interface connected with various kinds of reader and writer equipment.
(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED.
(10) Beam can be lifted and fall when power is cut-off.
(11) The function with or without card-reading memory cab be set according to your demand.
(12) Self-check and alarm for convenient to operate.
Technical parameters
| Overall dimension | 1200*280*980mm |
| Weight | 40kg |
| Tripod arm length | ≤500mm |
| Housing material | SUS(304#),thickness is no less than 1.5mm |
| Working voltage | AC220V±10%,50HZ±10% |
| Drive motor | DC brushed motors(24V) |
| Passage width | ≤600mm |
| MCBF | 3,000,000 cycle |
| Communication interface | TCP/IP |
| Passing speed | 40~50 people/min |
| Readable cards | IC/ID card |
| Operating time | 1s |
| Protection grade | IP54 |
| Working environment | Indoor; Outdoor (with shelter) |
| Working temperature | -40°C~60°C |
| Relative humility | ≤95%, no-condensation |
| Operating places |
Government agency, Subway station, Residential area, School, Enterprise, Factory, |
