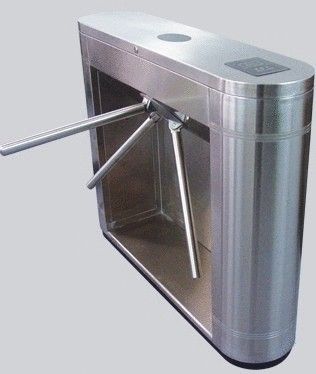

waist height turnstile RS 718

~Product name: waist height turnstile
Model: RS718

Our tripod turnstile is rustproof, well designed, compact, durable, stable quality. Tripod turnstile consists of casing, mechanism, PCB, brake bar and direction Indicator lamps, transparent and so on. It is the most economical choice for flow Control. In addition it is easy to install and maintain. Our tripod turnstile are widely Used in restaurant, factory workshop, club, government, residential community, office And so on. It can be easily integrated with all access identification Systems, such as 125kHz/13.56MHz reader, fingerprint reader, facial reader, ESD, Barcode and so on. Our tripod turnstile system is able to save the cost at most in People flow control fields.

Specification:
 Frame material: 304#SS
 Dimension: 1200x280x980mm
 Stainless steel thickness: 1.5mm4.
 Weight: 95KG5. Arm length: 510(mm)
 Max bearing force for arm: 90Kg
 Drive force for arm: 3Kg
 Driving method: Digital
 Open time: 0.2s
 Transit speed: 30 People/min

Features
 Control method: One way or two ways (optional).
 Several work method: Card for in And out, card in, free exit, card out, free in.
 Auto reset: Beyond prescribed time, the pass right will be cancelled.
 Lamp indication
 Has no delay demand on inputting control signal
 Work environment: Indoor, out door
 Relative humidity: ≤ 90%, no condensation
 Standard card read window bracket or customized size
 Communication interface: RS485
 Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with pulse Width≥ 100ms, drive current ≥ 10mA;
 Compatible with most RFID reader, biometric reader, ESD and so on.
 When power on, Brake bar goes up by manual operation (semi-auto), goes up automatically (full-auto), when power off, arm drop down.
Applications:
Sensitive sites: Military, nuclear, pharmaceuticals, customs checkpoint , Ports And harbor installations Airports, Sport, leisure and cultural centers
