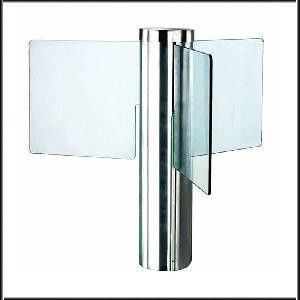

Waist Height Turnstile (A-TW203)

Waist high turnstile:
Swing Turnstile is able to connected with various kinds of card reader, such as IC card, ID card,
Waist high Swing Barrier Gate
Contains: Mechanism, Housing, Driver board, Power supply
Housing Material: 304 Stainless steel or Cold-rolled steel plate.
Drive mode: Motor drive, Photoelectric sensor
Access modes: 1. Locked.
2. Remote control by computer.
3. Authorized.
Noise: ≤ 65dB
Lane width: 550mm-600mm
Working state: Single or bi-direction, 16modes.
Status Indication: Allow passing through / Forbidden
Voltage: Input AC220V (adjustable)
Communication Interface: A: 12V Rssia, or >10MS 12V pulsing signal
B: Current driven>10MA; Or Passive node signal 10MS
Working environment: Indoor, Matching with rain frame for outdoor use.
Working temperature 00C-600C
Humidity: 5%-90%
Maintenance port: 2units
Service Life: Three million contiguous opening and closing of barrier panel.
Dimension: 1600x280x1040(mm)
Net Weight: 80KG
Feature & Advantages
1. Cold-rolled steel plate or 304 stainless steel casing optional.
2. Directional LED Optical Signals: Green Arrow or RED Cross signage.
3. Sixteen modes for passing through lanes
4. Mechanism is specially processed, more durable
5. Always open or close modes, When Fire alarm on, The acrylic will retract automatically.
6. Ensures rapid, efficient & safe access control.
7. Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
8. PhotoElectric Beams installed standard for all models.
