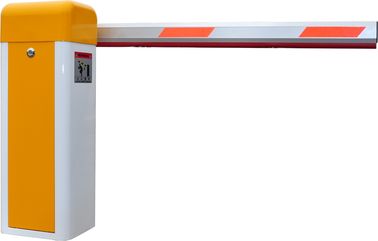

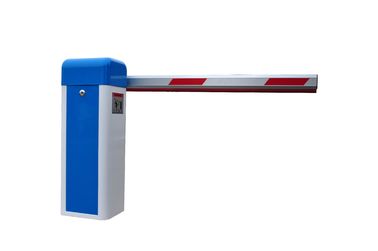

Intelligent Automatic Boom Barrier Gate For Parking And Vehicle Access Remote Control

Intelligent Automatic Boom Barrier Gate For Parking And Vehicle Access Remote Control

  • Intelligent Automatic Boom Barrier Gate For Parking And Vehicle Access Remote Control
  • Intelligent Automatic Boom Barrier Gate For Parking And Vehicle Access Remote Control
Intelligent Automatic Boom Barrier Gate For Parking And Vehicle Access Remote Control
Product Details:
Place of Origin: China
Brand Name: RS Security
Certification: ROHS, SGS, CE, FCC
Model Number: RS602
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: 3~5 days
Payment Terms: Ex works
Supply Ability: 1000 PCS/month
Contact Now
Detailed Product Description
High Light:

boom barriers

,

electric driveway gates

,

parking barrier gate



Intelligent Automatic Boom Barrier Gate for Parking and Vehicle Access Remote Control


Functions

Model: RS602


  1. The raise and fall of bar can be controlled by remote control
  2. Able to connect red and green lamps indicator ( optional)
  3. Able to connect infrared protection         (optional)
  4. Able to connect loop detector             (optional)
  5. Has tolling system interface              (optional)
  6. Over-heat protection for



Mechanism features:


  1. Gear motor drives barrier gate bar slow start grind to a halt, no- impact fast and steady movement, the operation range is limited within 90 degree for the bar, with zero accident. Quiet operation, noiseless, suitable for frequent raise and fall.
  2. Precise automatic tracking balancing mechanism makes static torque Zero for any position, which minimizes drive
  3. power and prolong service life.
  4. Barrier gate casing is made of advanced water-proof structure and anti-aging spray treatment, durable.



Tech parameter


  1. Size: 343*283*1015(mm),55KG
  2. Work power: AC220V 150W
  3. Raise and fall time: 3-6s ( adjustable)
  4. Work temperature: 30degree below zero to 85 degree up zero
  5. Barrier gate bar length: 3-6 meter ( optional)
  6. Humidity:  5%~95%
  7. Casing type: customized available



Material

304 stainless steel

Input voltage

220V AC220±10%, 150w

Size

343x283x1015mm

Barrier gate bar

3-6m

Net weight

55kg/unit

Work temperature

-30 to 85

Motor

24V DC brush

Humidity

5 to 95%

Raise and fall time

3-6s

Input interface

Relay signal, 12V level signal,

Model

RS602

Work environment

outdoor



Competitive Advantage:

Our advantage:


  • We are a leading manufacturer of turnstile and speed gate in China.
  • We focus on pedestrian turnstile gates.
  • We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
  • Design products according to customers’ requirements.
  • Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
  • Gratitude: We cherish the business chance you give us and return you with quality products and good service.
  • Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
  • We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
  • Price: very competitive price and good quality products
  • Quality: we do 100% inspection before the shipment.
  • Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.
