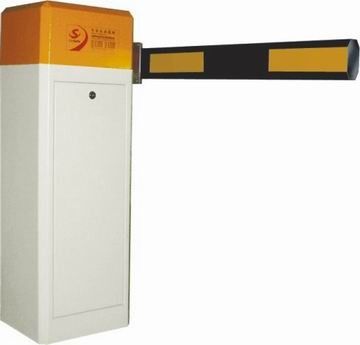

Traffic Parking Boom Barrier Gate

Traffic Parking Boom Barrier Gate
1.torque motor steady low noise
2.100%duty cycle,heavy duty

Traffic Parking Boom Barrier Gate

Accessories:shining prompt boom, loop detector

Necessary places: For pedestrians have restrictions
beam length:≤4.5m, beam rising time:6s; main beam: is Aluminum alloy octagon bar;
deputy and vertical beam are aluminum alloy ellipse bar

parameters:

1 outline size: L*W*H=360*300*1050(mm)
2 voltage: AC220V±10% 50Hz;
3 motor power: 150W;
4 surface treatment: plastic spraying;
5 working temperature: -10°C~+45°C(standard); -25°C~+40°C(low temperature)

6 relative humidity≤90% non-condensing
7 atmospheric pressure: 86Kpa~106Kpa
8 lifetime:≥500 million times
9 noise:≤60dB
10 motor speed:30r/min
11 motor torque:20N?m

12 weight:65KG

advanced features:
1 unique mould manufacturing , exquisite craft technology, easy to use.
2 motor and slow organization integration, free belt drive, low noise, more convenient and stable
3 balance design can ensure the beam running fast, stable, low powerful, to prevent lifting or pressing beam on purpose.
4 electronic controlling parts: Hall switch, mechanical travel switch, structure buffer top switch ,triple controlling.
5 Installed pressure wave switch, flexible reaction, automatic barrier can prevent smashing car safely and effectively, with assorting vehicle detector to achieve double prevention.
7 original platen installation technology, conveniently positioning.
