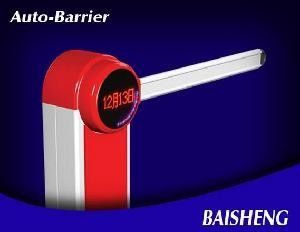

Barrier Gate, Boom Barrier Gate

Barrier gate, boom barrier gate
Technical specifications:
Barrier Model: BS-106x(AC)
Power supply: 220VAC 50Hz
Motor's power: 90W 220VAC
Max length of boom: 6m
Time for up/down: 2S( for 1~3m), 6S( for 4~6m)
Environment temperature: -20° C~ +50° C
Protection class: IP44
Model: BS-106x(DC)
Power supply: 220VAC 50Hz
Motor's power: 80W 24VDC
Max length of boom: 6m
Time for up/down: 2S( for 1~3m), 6S( for 4~6m)
Environment temperature: -20° C~ +50° C
Protection class: IP44
Barrier Features:
1. This automatic barrier is widely used for the facilities of parking, traffic or toll system.
2. Arms can be chosen from 3 meters to 6 meters.
3. BI-DIRECTION OF BOOM CLOSING, The arm could fall down on the left or the right direction.
4. Clutch key can be used to open the clutch when electricity is cut off.
5. All the process is soft without any noise and shaking.
6. This automatic barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.
7. LED Screen is available.
8. Reverse when the barrier meets obstacle.
9. Force of opening and closing is adjustable.&
