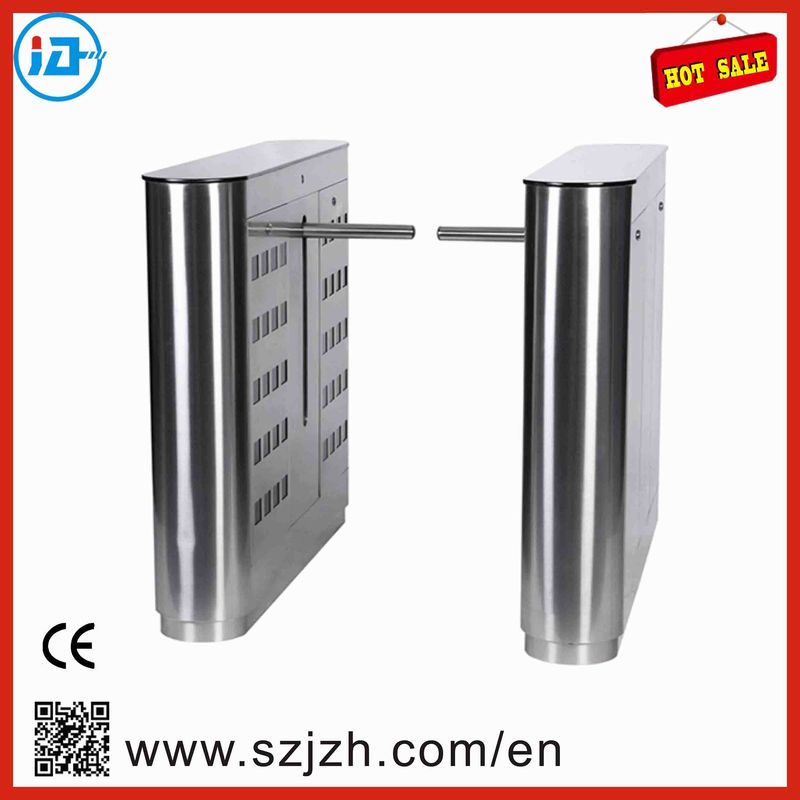

Drop arm barrier for access control

Drop arm barrier for access control

  • Drop arm barrier for access control
Drop arm barrier for access control
Product Details:
Place of Origin: shenzhen
Certification: CE, ISO9000
Model Number: JZH-108A/B/C
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $460-$610
Packaging Details: one piece/ carton
Delivery Time: 10-15days
Payment Terms: T/T, western union
Supply Ability: 500 piece/ month
Contact Now
Detailed Product Description
High Light:

drop arm barrier for the disabled

,

drop arm barrier for access control

,

drop arm barrier for crowd control

1. Product introduction

Drop Arm Barrier is a kind of high-tech product used for the intelligent management for the pedestrian access control. It is the upgraded product of Tripod Turnstile and Flap Barrier. Similar to Flap Barrier, it is of fine processing, complete function and high grade. It mainly applies in such upscale places as residential estates, intelligent buildings, hotels, metros, docks, chambers, etc.

Machinery, electronics, microprocessor control and all kinds of identity recognition technology are organically integrated in the equipment. It is very convenient to be used with those card-reading recognition systems, such as the IC card, ID card, bar-code, fingerprint, etc. It realizes the intelligent control and management for the passageway by matching all kinds of identity recognition system equipments and adopting the reliable performance of the security protection devices, alarm devices, direction indicators and so o

2. Features and Functions

1. Fault detection and alarm functions, easy to use and maintenance

2. The running status can be programmed and controlled with the built-in keyboard on the main board

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)

4. Anti-breakthrough function. The gate is locked automatically until opening signal received

5. Synchronization functions (for dual gate equipments)

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically

7. Gate can be set as normally open or normally closed

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)

9. Direction can be set as single-direction or bi-direction

10. LED direction indicator

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional)

14. Support infrared photocell for anti-pinch and reset function

3. Technical Specifications

1) Dimensions of the case: JZH-108A: 1200*260*1000(mm); JZH-108B: 600*260*1000(mm); JZH-108C: 1080*230*1000(mm)

2) Length of the standard arm: 490mm; optional range: 250-550mm

3) Weight: 90kg

4) Material of the case: Chinese standard (304, 1.2mm) stainless steel, perforated with laser

5) Power voltage: AC220±10% V, 50HZ

6) Driving motor: DC motor(24V)

7) Input interface: the relay switch signal or 12V level signal or 12V pulse width > 100ms 12V pulse signal, driving current > 10mA

8) Normal service life: 4 million times

9) LED Indicator Light: 2

10) Card-reading Window: the entire upper cover is toughened with 10mm cranberry ground glass, elegant and luxurious

11) Access port: 4

12) Passing speed: 30-40 persons/ minute

13) The leading time for the gate opening and closing: 1 second

14) The time needed for going into the state of passing after powered on: 3 seconds

15) Restoring time after fault occurs: 10 seconds

16) Working environment: indoor/ outdoor( with shelter);

temperature: -10℃---50℃

Relative Humidity: :≤90%, no condensation
