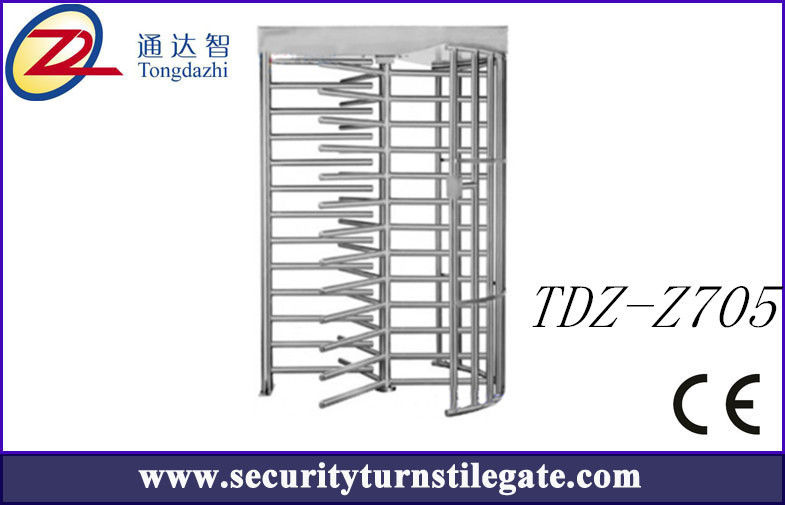

Single Mechanical Turnstile Automatic Pedestrian Barrier Gate with CE Approval



Single Mechanical Turnstile Automatic Pedestrian Barrier Gate with CE Approval





Product Description:

Appearance GB (304) stainless steel plate stamping molding, nice shape, rust-proof and durable.And foreign standard electrical interface, bar code card, ID card, IC card reader can be easily integrated in the equipment.Access personnel civilized in order and put an end to illegal access. the satisfy requirement of fire protection system is also designed the function, in case of emergency, guarantee channels unimpeded, convenient personnel evacuation in time.



Full Height TurnstileIt
1.automatically lock if the pedestrian hasn't passed through Compatible with intellegent access

Full Height Turnstile

1 Main technical parameters

1) Power: AC220±10% V,50HZ

2) Driving electromotor: DC electromotor 24V

3) Working environment temperature: -10^OC - 50 ^OC

4) Relative humidity: ≤90%

5) Input interface: 12V level signal or DC12V pulse signal with width of more than 100mA, driving current>10mA

6) Communication interface: RS485 electric interface

7) Communication distance≤1200m

8) Transit speed: 30persons/min(open-often model)

20persons//min(close-often model)

9) Time of gate opening or closing: 1sec



2 Parameter specification

(1) Enter menu:

Press set key, after hearing a sound “du”, loosen from SET key. At this time, the word “poo” is displayed, which means that it’s in status of menu setup. And at this time INC key and DEC key can be chosen to setup function number: Press INC key for function number plus one, and press DEC key for function number minus one; there are 10 kinds of functions as below:

P00: Exit from menu setting, when POO appears, press SET Key to back; Press INC Key and DEC Key to choose setting parameters;

P01: Working mode of the equipment setup, there is 3 working

P02: The locking status setup:

=0 means not return to zero position

=1 means return to zero position

P03: Transit time setup

P04: Default value reset

(2) Go back from menu setup:

Press INC Key or DEC Key, when it display the word P00, press SET Key to back from menu setup.



1.Fault detection,user-friendly maintenance and use

2.Bi-direction, or one direction permitted, one forbidden, or one direction need card reader, one for free.

3.Free movement in both directions without power, power lock function automatically restore on power in

case of emergency.

4.When a valid card is read, pedestrian just gently push the turnstile.Turnstile can be automatically reset.

Two-way channel, three doors are always closed state, the revolving door rotated120 degrees (or 90 degrees

each time)

5.Uses a unique rotating system, the gates locked in the zero position, unlock more accurate and reliable.

6.A unified, standard external electrical interface, can be articulated with a variety of equipment to read and

 write, and easy system integration, and remote control and management by managing computer

7.With automatic reset function.When a valid card is read, the passage of time did not pass, the system will

automatically cancel the access by the access permissions.And passage time limit set by the manager.

8.485 remote control gate opening and closing functions to meet the user's special needs and fire safety

requirements.

9.Automatically statistical prevailing number of prevailing direction,and presented to managers by intuitive

LED (optional) ,manager can be well aware of the number of   passage of a direction.

10.Card reader with memory and without memory function according to user needs, and the user can be

set through the control panel.

11.May limit the total number of sites within software set to meet the special needs of special occasions.

12.Smooth operation of the whole system, noiseless.



1.Structure: Frame structure / stainless steel housing

2.Production process: full computer CNC laser cutting machine production

3.External dimensions: length1500 * wide 1500 * high 2300 mm

4.Stainless steel thickness: 1.5 mm

5.Weight: around 350kg

6.Brake rod length:600mm

7.Brake rod drive mode: digital mode

8. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free

9.Re-position function. After card reading, if passenger not through within the specific time, time and the

 limit passing time length can be set.

10.Access Prompt function:Red and green light prompt the passing information.

11. Using optical hole works, no delay on the input control signal

12.Working environment: indoor and outdoor with shed

13.Ambient temperature:  -10 Celsius  to 50 Celsius,Relative humidity: ≤90% no condensation

14.Induction card read bayonet size: equipped with standard mounting bracket, or to tailor

15.Gate opening time:0.2 second
