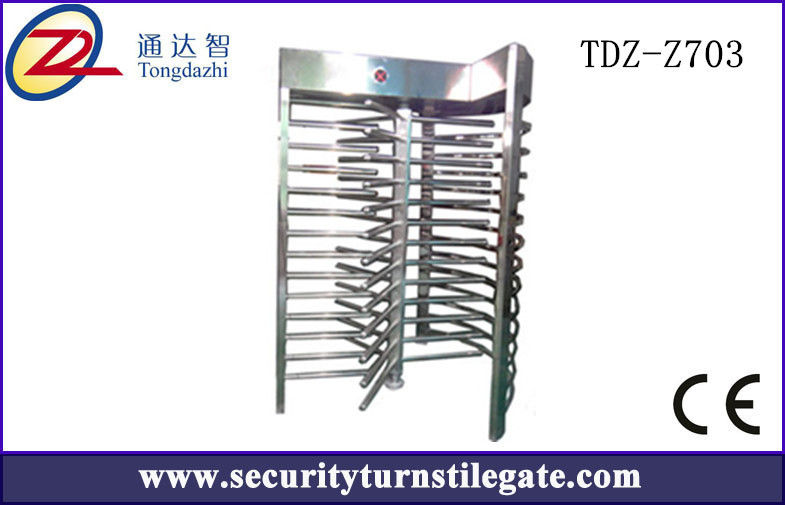

RFID Single Full Height Turnstile Access Control , security Mechanical Turnstile



RFID Single Full Height Turnstile Access Control , security Mechanical Turnstile





Quick Details



1. Size:1500*1500*2300 mm
2. material and color are optinal
3. Material:304stainless steel
4. turnstile manufacturer,factory price
5. OEM welcome



Description:

A turnstile is a gate-like structure consisting of many horizontal posts which can rotate to either allow access to users, or to stop users from entering a restricted area. They are used most commonly in train stations, airports, theme parks, museums and office lobbies.





Technical Parameters



Framework	304(standard)stainless steel
Size	1500*1500*2300 mm
Weight	350kg.
Operating Mode	one-way or two way control
Power supply voltage	AC220 ± 10%V, 50HZ
Interface	standard RS485/distance≤1200m or TCP/IP.
Gate opening time	0.2 second
Transit speed	30-40 persons per minute
Working environment	indoor or outdoor
Temperature	-10 Celsius  to 50 Celsius
Relative humidity	:≤90% no condensation





Functions& Features



1. Fault detection,user-friendly maintenance and use



2. Bidirection, or one direction permitted, one forbidden, or one direction charged, one for free, and all the

working molds set by the buttons in the main control board.



3. Free movement in both directions without power, power lock function automatically restore on power in case

 of emergency.



4. When a valid card is read, pedestrian just gently push the turnstile.Turnstile can be automatically reset.

Two-way channel, three doors are always closed state, the revolving door rotated120 degrees (or 90 degrees

 each time)



5. Uses a unique rotating system, the gates locked in the zero position, unlock more accurate and reliable.



6. A unified, standard external electrical interface, can be articulated with a variety of equipment to read and

write, and easy system integration, and remote control and management by managing computer



7. With automatic reset function.When a valid card is read, the passage of time did not pass, the system will

automatically cancel the access by the access permissions.And passage time limit set by the manager.



8. Smooth operation of the whole system, noiseless.







 Our service



Visit our factory free.

Reply your inquiry in 24 working hours.

Professional staff answer your questions in English.

Customized design is available,we can accept OEM & ODM.

Unique problems can be made solution by our professional engineers.

Special discount and protection of our distributors or agents in their area.





Detailed diagram
