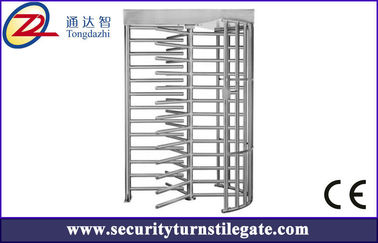

Mechanical Turnstile access

Mechanical Turnstile access
Mechanical Turnstile access Mechanical Turnstile access

Large Image :  Mechanical Turnstile access

Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-Z705
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 2000 -3000 / Piece
Packaging Details: paper carton and wooden cases
Delivery Time: 3-4 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1500*1500*2300mm Package Size: 1550*1550*2350mm
Weight: 350kg Rod Length: 510mm
Machine Core: Semi Automatic Solenoid: DC 24V
Power Supply: AC 220 ± 10%V,50Hz Normal Life: 3,000,000 Times
Temperature: -10℃ - 50℃ Work Environment: Indoor And Outdoor
MOQ: 1 Piece Package: Paper Carton And Wooden Case
Leading Time: 4 - 5 Working Days For Sample Production Payment Terms: T/T Or West Union
High Light:

Single Turnstile

,

Football Turnstiles



Automatic access full height turnstile mechanism


Quick Details

  • 120 degree single lane full height turnstile with high security
  • Unique rotationg system
  • Control panel with counting function,LED display function (optional).
  • Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products



Product Descriptions:



  1. Waterproof, sunscreen, anti-temperature, anti-cold.​​
  2. Access Prompt function:Red and green light prompt the passing information.
  3. Can set a one-way or two-way control
  4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
  5. Control panel with counting function,LED digital display function (optional)
  6. When a valid card is read,pedestrian just gently push the rod.After passing,turnstile can be automatically reset
  7. Scour protection function ,when the gate signal is not received, arms keep closed
  8. With automatic reset function,if does not pass in the set time,turnstile will get back
  9. Normally open or closed can be freely adjusted
  10. can be used with a variety of reading devices, work when it receive relay switch signal
  11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
  12. Card reader with memory and without memory function according to user's needs,and can be set through control panel






Technical Parameters



Material 304/316 stainless seel (optional)
Fishing Brushed surface (standard) / Polishing surface
Dimension 1500*1500*2300mm
Rod length 510 mm
Drive solenoid DC 24V
Power supply AC220 (110) ± 10%V,50Hz
Working life 3,000,000 times
Communication Interface RS485 / RS232,Ethernet
Transit Speed 20 - 35 passage / minute
Work Environment Indoor / Outdoor (Shelter)
Use Place Station,park,apartment,school,factory,bank,building




Customized Features:


  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software
