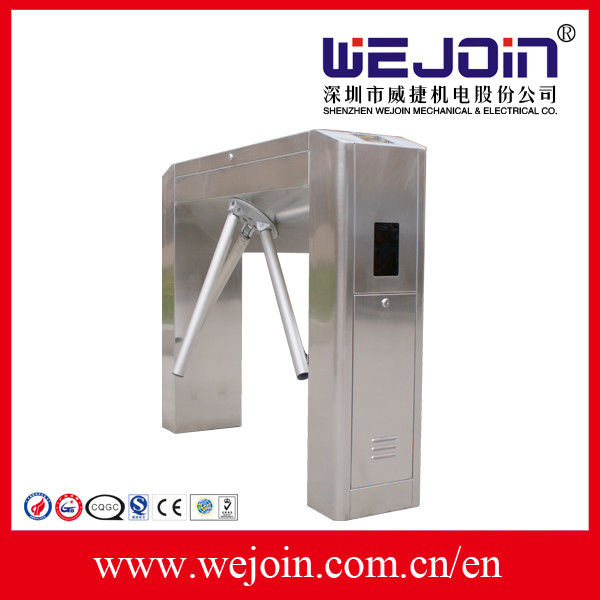

automatic waist height turnstile gates

1. Stainless steel housing
2. Bi-direction passing, the arm can rotate from one direction or two directions(optional)
3. Adjustable working mode, can be two way passing or one way passing, and the other is prohibited
4. Arms auto drop when power off
5. Arms auto rise up when power on and auto drop on obstacle
6. Traffic light indicator
7. Wingen 26/Dry contact, is compatible with smart card for access control
8. Photoelectric inspection
9. If the passenger does not pass in valid time, the passage will lock up, and the valid time is adjustable
10. Passenger counter.

Technology data

1. Power supply/frequency: AC220V±10%, 50HZ

AC110± 10%, 60HZ

1. Working voltage: DC12V
2. Rated power：50W
3. Working temperature: -25℃~+55℃
4. Relative humidity: ≤90%
5. Motor speed: 850 times/minute
6. Dimension: bridge: 1235*280*100 type: WJ-TS112

Vertical: 420*330*980 type: WJ-TS122

1. Length: 490mm
2. MAX boom endurable: 80kg
3. Boom working force: 4kg
4. Working environment: inner and outer
5. Flow speed: 25~30/minute
6. Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).
7. EM signal interface, dry contact (COM NO)..
8. Alarm input interface:DC12V
