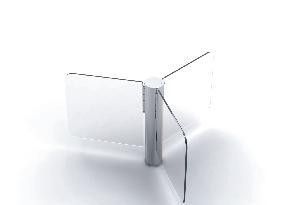

Waist-Height Turnstile (DWT-700)

Features
1. Stainless steel central pillar, with anti-corrosion treatment, to be fixed to the floor by means of an orientable fixing ring allowing easy levelling.
2. Clear tinted toughened glass panel, thickness: 10 mm.
3. Stainless steel plates, brushed finish. These plates ensure easy access to the electro-mechanical group and to the logic board.
4. Electro-mechanical group with a 230 VAC motor and an impulse encoder connected to the logic board, enabling permanent feedback about the glass position and an appropriate reaction by the logic.
5. Brushed stainless steel curved handrails avoiding a passage in the opposite direction than the authorized one.
Function
1. The DWT is activated by an impulse from an access control system such as push-button or card reader installed on a support post or from a console in the reception area.
2. After activation, the gate rotates 120° Allowing one authorized person to pass through. According to the selected mode, the obstacle rotates automatically or after a light impulse (push and go). Once the rotationis completed, the DWT re-locks waiting for a next passage, in the same direction or the opposite.
Specification
Power supply: 230V AC, 50Hz
Power consumption: Max 200 W
Ambient temperature: 0° C to + 50° C
Weight: 98 kg
Rotation time: Form 3 to 10 seconds
