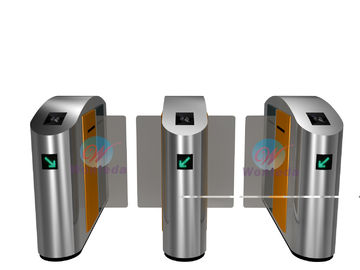

Waist Height Height Speed Gate 304 Stainless Steel Sensor Gate

Waist Height Height Speed Gate 304 Stainless Steel Sensor Gate

Waist Height Height Speed Gate 304 Stainless Steel  Sensor Gate

Product Details:

Place of Origin: Speed Gate Made In China
Brand Name: WTD speed gate
Certification: CE
Model Number: WTD-B901

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 10-15 day
Payment Terms: T/T ,Western Union,Paypal etc..
Supply Ability: 1000 Set/Month
Contact Now
Detailed Product Description

Product Name:

Waist Height Height Speed Gate 304 Stainless Steel  Sensor Gate

Specifications

High quality automatic full height speed gate
1.304#Stainless steel material.
2.Bi-Direction Access Control
3.Self-recovery function.
4.Indoor or outdoor (added the rainshed) .
5.Anti-collision function.

Product Description:

     Intelligent Speed Gate provides a secure bi-directional entry control, while blending beautifully with high end environments. Some of the benefits of using Intelligent Speed Gate increased facility security; more organized entry/exit process; and a  reduction  in staff  required  to monitor guest/employee access.

Brand name Full High Speed Gate/sliding turnstile gate
Housing material 304#stainless steel
Finishing Brushed surface (Standard) / Polishing surface
Dimension 1400x310x990mm
Passage width 600MM
Driving electric motor brush-typed DC motor (24V)
Weight 90kg(single flap) 140kg(double flap)
Operation Voltage DC24V
Power Voltage 220V or 110v
Pass direction one or bi-directional
Arm wing material Acrylic glass(Default)/Tempered glass (Optional)
Temperature: -20℃ ~ 60℃
Relative Humidity ≤ 95%, no condensation
Work Environment Indoor
 Pass speed 30 person / min
Communication Interface RS485
Input interface Dry contact signal/12V signal/DC12V pulse signal
Normal life-span 3 million

Technical Parameters :

1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

You can custom made appearance of turstiles   can choose 316 stainless steel  or each color of iron baking varnish


Full Height Turnstile size:
Waist Height Height Speed Gate 304 Stainless Steel  Sensor Gate
