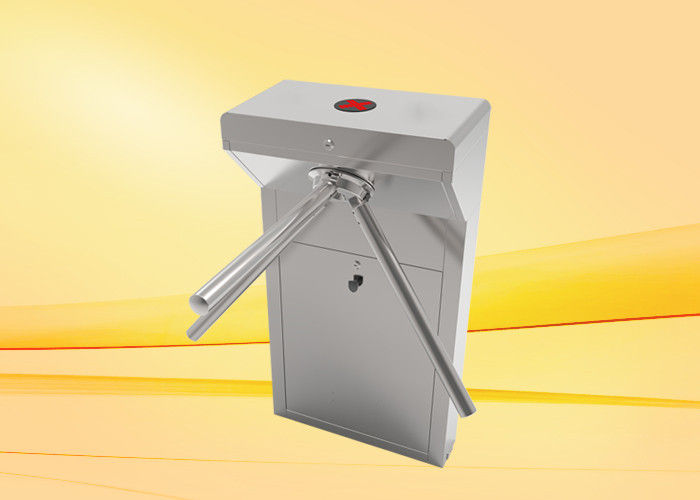

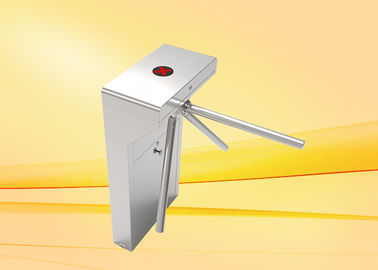

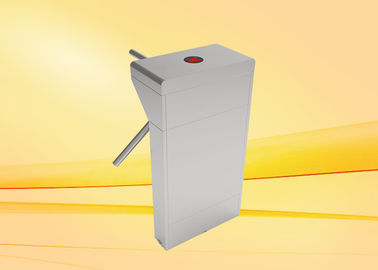

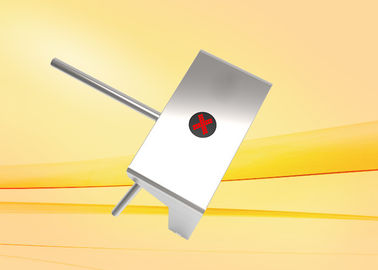

Security SUS304 Three Rollers Tripod Turnstile with access controller / opening gate

Product Details:

Place of Origin:	China
Brand Name:	Granding
Certification:	CE/FCC
Model Number:	TS-100

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Packaging Details:	Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time:	2 working days after received your payment
Payment Terms:	T/T in advance
Supply Ability:	5,000pcs per week

Contact Now

Detailed Product Description

Product Name:	Tripod Turnstile	IP Grade:	IP54
Material:	SUS304 Stainless Steel Material	Direction:	Both Direction
Verification Mode:	Contain Driver Control Board	Power Supply:	110-220V
High Light:	stainless steel turnstile , turnstile security systems

Standard Semi Automatic Bi - Direction Vertical Tripod Turnstile , Contain Driver Control Board , Power Supply

Features:

1. The TS100 tripod turnstiles are designed in compact structure.

2. The optimal cost effectiveness, low power consumption, and the high operating reliability, make this semi-automatic tripod turnstile quite popular home and abroad.

3. Coming with the default mode of locking, the vertical tripod turnstile will be actuated for the passage of one passenger once receiving authorization signal.

4. The access control turnstile is electronically controlled in both directions. It is possible for users to set up free passage at one direction.

5. In case of emergency, the arms of the tripod turnstile will be lowered for rapid evacuation.

6. The electromagnet can be used for locking when it is activated. When the machine is in idle status, the electromagnet is in standby mode.

7. Made of SUS304 stainless steel, this product can be designed with flexible reader installation plate, for the integration of the reader from the third party.

Specifications

Reader Type	Operating Temperature
Access control panel, no reader	-28°C-60°C
Power Supply	Working Environment
AC 220V/110V, 50/60Hz	Indoor/Outdoor (with shelter)
Rated Power	Operating Humidity
60W	5%-85%
IP Rating	Pictogram Indication
IP54	Yes
Housing Material	Control System
SUS304	Input controlled by dry contact
Emergency Button	Passenger Flow
Yes	25-48 passengers/minute
Package Data	Optional Function
Net weight: 34kg Gross weight: 40kg Product size: 52×98×28cm+arm length 50cm Package size: 60×108×38cm	Customized material or structure, third-party access control, ticket system, passenger counter.
