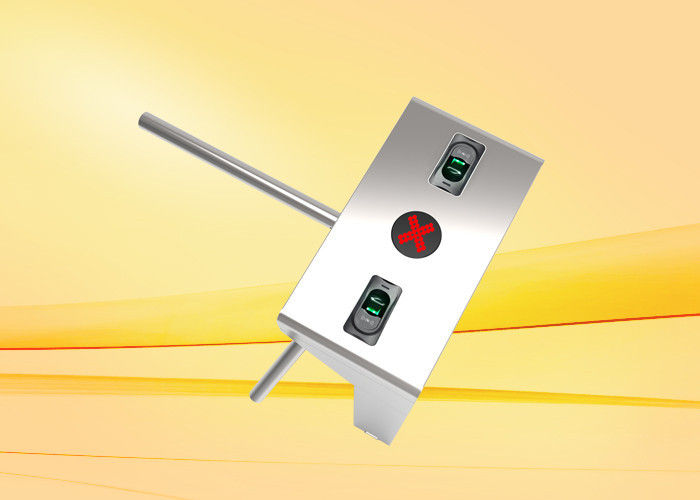

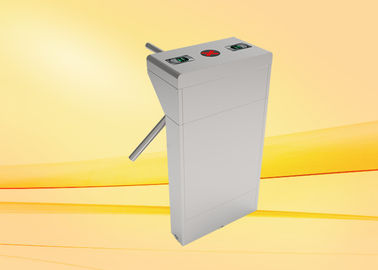

Intelligent stainless steel vertical tripod turnstile half height with fingerprint + RFID reader

Product Details:

Place of Origin:	China
Brand Name:	Granding
Certification:	CE/FCC
Model Number:	TS-300

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Packaging Details:	Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time:	2 working days after received your payment
Payment Terms:	T/T in advance
Supply Ability:	5,000pcs per week

Contact Now

Detailed Product Description

Product Name:	Tripod Turnstile	IP Grade:	IP54
Material:	SUS304 Stainless Steel Material	Direction:	Both Direction
Verification Mode:	Control Panel And Fingerprint+RFID Reader	Power Supply:	110-220V
High Light:	stainless steel turnstile , waist height turnstile

Semi - Automatic Three Rollers Tripod Turnstile With Access Controller / Opening Gate / Opening Door

Features:

1. Fingerprint and RFID Semi automatic bi-direction vertical tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems; they could be integrated

4. with multiple devices like card and fingerprint readers. Meanwhile, they are equipped with specialized interface for firefighting linkage.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.

Specifications

Reader type:	Operating Temperature:
TS100: contain Driver control board, power supply	-28°C-60°C
TS200: with controller and RFID reader	Operating Humidity:
TS300: with controller and Fingerprint & RFID reader	5%-85%
Power Supply	Working Environment:
AC 220V/110V, 50/60Hz	Indoor/Outdoor (shelter)
Rated Power	Flow Rate
60W	25-48 passage/minute
Ingress Protection	Pictogram Indication
IP54	Yes
Casework Material	Control system
SUS304	Input controlled by dry contact
Emergency Button Input	Dimension
Yes	529828(CM)+arm length 50CM
Package Dimension	Net weight
6010838(CM)	34KG
Gross Weight with Package	Optional Function
40KG	Alternative Material or shape, third-party access control integration, ticket system integration, passage counter.

Introduction:

Tripod turnstiles are compact and cost-effective, low power consumption, high operating reliability. Default mode is to lock the mechanism. On receiving authorization signal, it allows one passage at a time. Passage in both directions is electronically controlled. You can set one side free by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage
