Door security access control RFID Automatic tripod turnstile for tourist attractions

Door security access control RFID Automatic tripod turnstile for tourist attractions

  • Door security access control RFID Automatic tripod turnstile for tourist attractions
  • Door security access control RFID Automatic tripod turnstile for tourist attractions
  • Door security access control RFID Automatic tripod turnstile for tourist attractions
  • Door security access control RFID Automatic tripod turnstile for tourist attractions
Door security access control RFID Automatic tripod turnstile for tourist attractions
Product Details:
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: TS-200
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Contact Now
Detailed Product Description
Product Name: Tripod Turnstile IP Grade: IP54
Material: SUS304 Stainless Steel Material Direction: Both Direction
Verification Mode: RFID Card Reader And Control Panel Power Supply: 110-220V
High Light:

stainless steel turnstile

,

waist height turnstile

Semi Automatic Bi - Direction Vertical Tripod Turnstile , With Rfid Card Reader And Control Panel, Power Supply



Features:



1. less mechanical wear

2. SUS304 stainless steel

3. Electromagnets for lock are used only when activated, standby mode when the device is idle.

4. Patented compact mechanism ensue the long life of the lubricating oil inside.

5. High quality electrical components

Safety and humanization design

1. Drop arm design for emergency purpose

2. No exposed screws, it is safer for the user.

3. Smooth operation designed for mass transit application

4. The pictogram on the device indicating access permission and direction of movement

5. Special designed case shape, user-friendly for passenger to punch card or fingerprint

6. Anti-tailgate

Easy integration

1. Flexible reader installation plate. Customer can easily integrate third party reader.

2.  provides integration of turnstile controller, reader and whole system. It’s easy to install for the users.





Specifications



Reader type:

Operating Temperature:

TS100: contain Driver control board, power supply

-28°C-60°C

TS200: with controller and RFID reader

Operating Humidity:

TS300: with controller and Fingerprint & RFID reader

5%-85%

Power Supply

Working Environment:

AC 220V/110V, 50/60Hz

Indoor/Outdoor (shelter)

Rated Power

Flow Rate

60W

25-48 passage/minute

Ingress Protection

Pictogram Indication

IP54

Yes

Casework Material

Control system

SUS304

Input controlled by dry contact

Emergency Button Input

Dimension

Yes

52*98*28(CM)+arm length 50CM

Package Dimension

Net weight

60*108*38(CM)

34KG

Gross Weight with Package

Optional Function

40KG

Alternative Material or shape, third-party access control integration, ticket system integration, passage counter.





Introduction:



Tripod turnstiles are compact and cost-effective, low power consumption, high operating reliability. Default mode is to lock the mechanism. On receiving authorization signal, it allows one passage at a time. Passage in both directions is electronically controlled. You can set one side free by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage

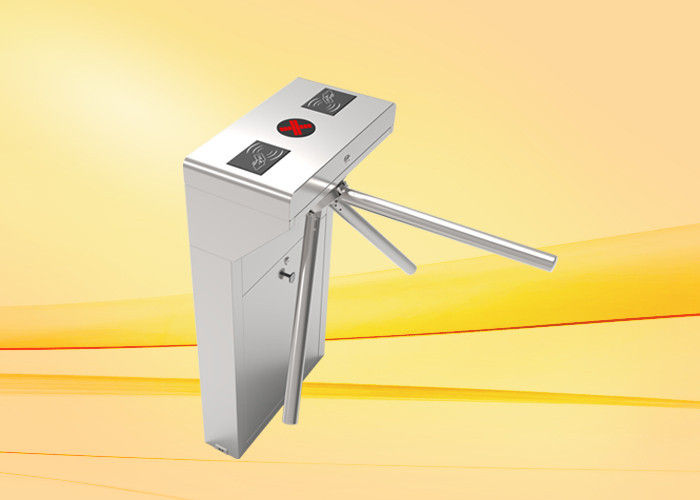

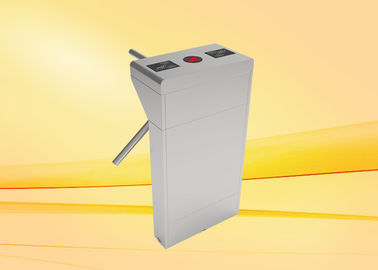

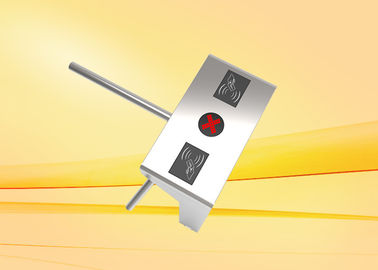

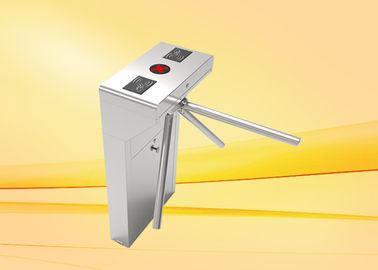

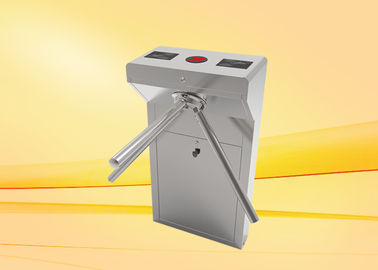

Door security access control RFID Automatic tripod turnstile for tourist attractions 0Door security access control RFID Automatic tripod turnstile for tourist attractions 1Door security access control RFID Automatic tripod turnstile for tourist attractions 2

Door security access control RFID Automatic tripod turnstile for tourist attractions 3
