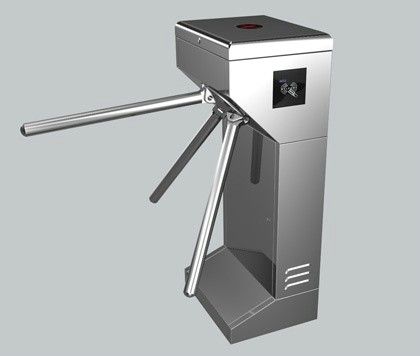

Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem

Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem

  • Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem
  • Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem
  • Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem
Time Attendance / Tolling 0.2S Stainless Steel ID Card Tripod Turnstile Gate for Musem
Product Details:
Place of Origin: China
Brand Name: Centuryfair
Certification: CE
Model Number: SJSDZG-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard carton
Delivery Time: 10-15 days after payment confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300 pcs per month
Contact Now
Detailed Product Description
Communication Interface: RS485 Opening Time: 0.2 Second
Speed: 20--30 Persons/min Housing Dimension: 420*330*980mm
Arm Length: 510mm Weight: 40 Kgs
High Light:

time attendance gate

,

access control gate

Vertical Stainless Steel Tripod Turnstile Gate For Park or Airport

Quick details:
1.Framework:304# Stainless Steel
2.Single direction or bidirection
3.3 groups of infared sensor
4.NO/NC two models for option  to relieve heavy traffic
5.Dynamic super bright LED display to show the direction


Description:
SJSDZG1 provides a basic tripod to control access smoothly and effectively by basic operation,
and also prevent illegal entry and exit. The machine has good performance in design, rustproof,
durable and can resist external destroy, compatible with RFID access control devices, fingerprint
controller, barcode and so on.


Applications:
Bus Station
Exhibition
Airport
Subway
Government
Supermarket
Apartment

Factory

Museum
Park and so on


Specifications:

Framework

304# Stainless Steel

Dimension

420*330*980mm

Weight

40 kgs

Arm length

510mm

Max Arm load

80 kgs

Arm working  force

3 kgs

Arm driving way

Digital

Open time

0.2 second

Transit speed

20——30 persons per minute

Temperature

-10℃—— 50℃

Relative humility

≤90%,  no-condensation

Communication interface

RS485,  distance ≤1200M

Input interface

dry contact signal or 12V level signal,  or 12V pulse signal with whose pulse width >100ms,  driven electricity >10mA


 Competitive Advantages:

1. Single direction or double direction for option

2. A valid lock action can allow one passage at one time

3. Normally open---the machine will unlock when a valid signal is received

4. The gate will lock automatically if passagers do not pass it within giving time.  The passing time is

adjustable for different requirement.

5. The arm falls down automatically in case of power off

6. Count and LED digital function (optional)

7. Traffic light guides traffic direction

8. Easy to be integrated with magnetic card, barcode card, ID card,  IC card,  etc

9. Memory function

10. Standard input/output port to integrate with other systems
