Fingerprint Optional Waist Height Tripod Turnstile Management

Fingerprint Optional Waist Height Tripod Turnstile Management

Specifications

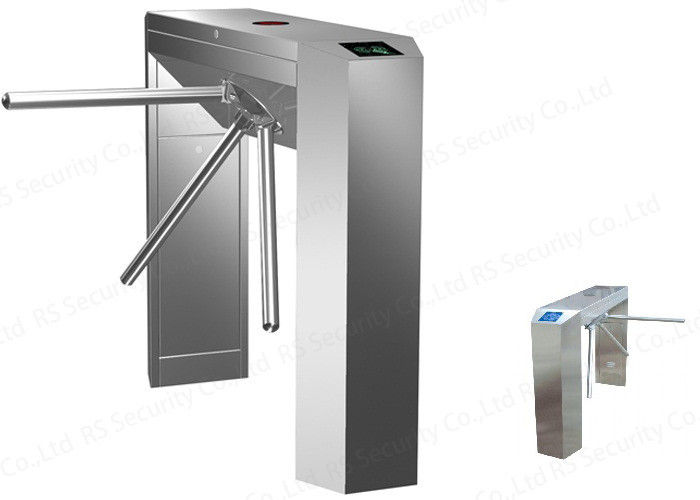

 Waist Height Tripod Turnstile

1. bi-directional, shock-absorber

2. #304 stainless steel

3. IC/ID/barcode control accepted

4. tripod arm

5:low niose

6.run smooth

Description:

RS Security  is an electro mechanical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.

RS Security can effectively control high volume human traffic ( up to 25 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.

RS Security is suitable for indoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc

Feature:

• Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

• If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

• Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

• Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

1. tripod turnstile Functions

1) The tripod turnstile has fully rainproof stainless steel housing, processed by numeric control punching and laser drilling, novel and elegant.

2) The tripod turnstile has unique mounting surfaces (for the installation of card reader and indicator light, etc.), ensuring simple and convenient installation of the turnstile control equipment of system integrators.
3) The interior module of the tripod turnstile has a cushioning device for automatic regulation of hydraulic pressure, which helps to realize low noise, no impact and automatic decelerated returning to home position during operation of the turnstile. The finish of the interior module has been treated by yellow dichromate plating.
4) Programmable turnstile control is available, for one-direction or bi-direction control (to be set by the user).

5) The base cover can be opened using a key, therefore it is convenient for the user to install it. There are card reader supports at both sides of the turnstile, and a 40CM*18CM mounting plate, for the mounting of controller, is fixed at one side of the housing.

6) The tripod turnstile base is fixed with four 10MM expansion bolts.

2. tripod turnstile Technical Parameters and Configuration:

Housing: 1200*280*980;

Tripod Bar: Length 480 mm, Diameter 40 mm

Power Supply: Single-Phase AC220V, 3A, 50/60Hz

Control Voltage: DC24V, Power Consumption: 40W

Electromagnetism: No Residual Magnetism, without Magnetization

Buffer: Hydraulic Pressure Reset Cushioning, without Bumping Noise

Operating Ambient Temperature Range: -20°C~60°C

Operating Ambient Humidity Range: 0~95%RH

Net Weight: 45kg

Gross Weight: 50kg
