LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle

LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle

  • LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle
  • LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle
LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-S348
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1400*280*1000mm Package Size: 1450*330*1050mm
Weight: 70kg Rod Length: 510mm
Machine Core: Semi-automatic Normal Life: 3,000,000 Times
High Light:

Turnstile Security Products

,

Half Height Turnstile



LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle


Quick Details

  • ​Bridge type:1400*280*1000mm
  • Rod length:510 - 600mm
  • Rod with rubber,anti-crash
  • Fully automatic / semi automatic / manual type are optional
  • Control panel with counting function,LED display function (optional).
  • Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products





Technical Parameters


Structure

frame structure / standard stainless steel shell

Production

full CNC laser cutting machine production

Finishing Brushed surface (Standard) / Polishing surface
Dimensions 1400 (L) * 280 (W) * 1000 (H) MM

Rod length

510mm

Arm Diameter

38mm (Standard) / 48mm

Max Tolerance of Arm 30kg
Driving Force of Arm 3kg

Stainless steel thickness

1.5mm

Drive Solenoid

DC 24V

Power supply AC220  (110)  ± 10%V,50Hz

Working life

3,000,000 times

Communication Interface

RS485 (1CH) / RS232 (3CH) ; Available to CAN BUS and Ethernet (Optional)

Transit Speed

20 ~ 35 passage / minute

Work Environment

Indoor / Outdoor (Shelter)

Use place

station, park ,apartment, school, factory etc











Product Descriptions:





According to different control modules, this series can be divided into Fully-Automatic Type, Semi-Automatic Type, and Manual Type.Standard tripod turnstile often use semi-automatic mechansim,if you need fully automtic or manual type,it absolutely no problem




Semi-Automatic Type:


  1. Model: TDZ-S348
  2. Auto-drop-arm function: the middle arm can drop down automatically (default) (or free passing) when the power is off.
  3. Emergency-escape function: the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
  4. The structure has no motor.
  5.  Both directions can be set as controlled mode or free mode.
  6. NO mode & NC mode can be switched over by users easily & freely.
  7. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.



Customized Features:



  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software

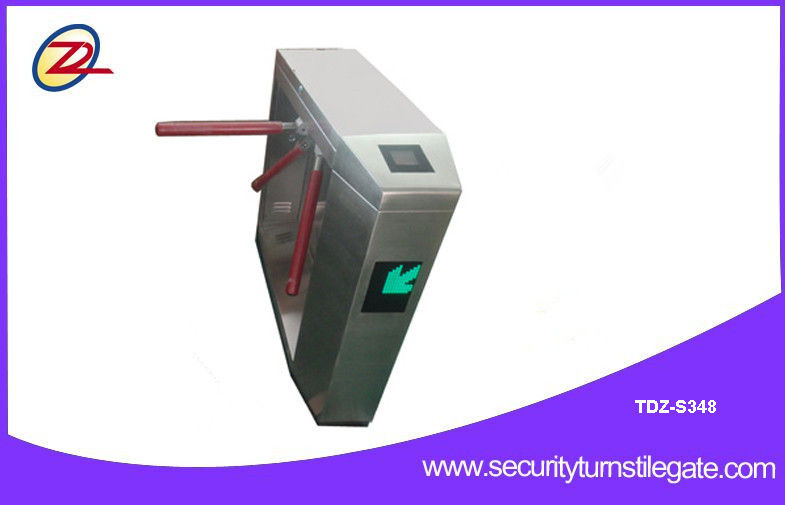

LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle 0

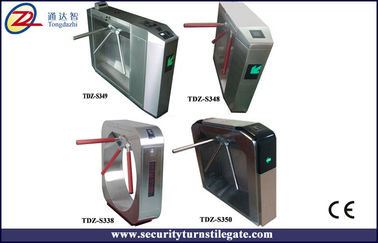

LED Indicator Bar code Tripod Turnstile Gate Access Control Turnstyle 1
