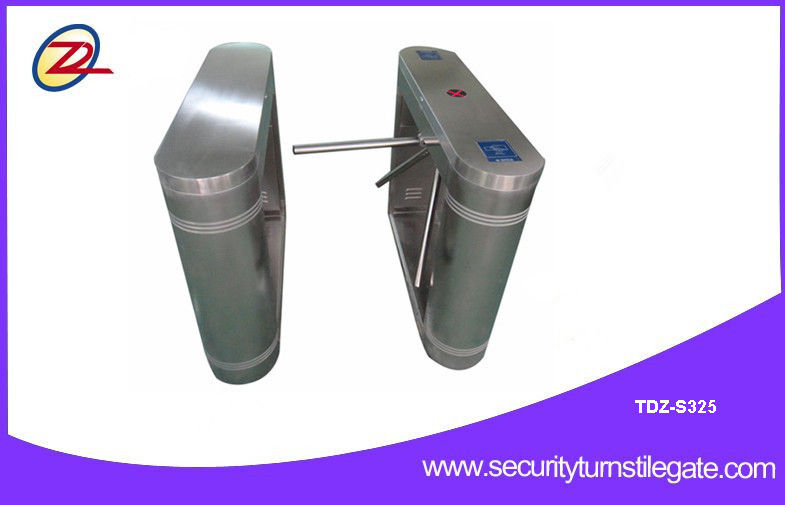

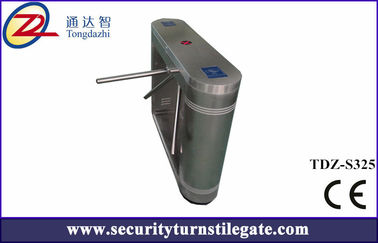

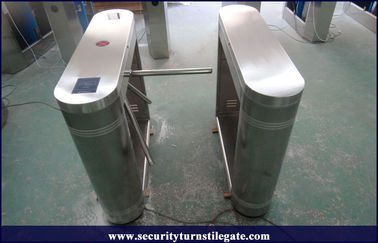

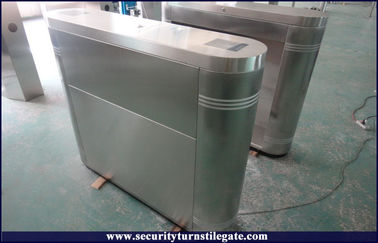

Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel

Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel

  • Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel
  • Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel
  • Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel
  • Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel
Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-S325
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: 1200*280*1000mm Package Size: 1250*330*1050mm
Weight: 70kg Rod Length: 510mm
Machine Core: Semi-automatic Normal Life: 3,000,000 Times
High Light:

Turnstile Security Products

,

Half Height Turnstile


Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel

Quick Details

  • ​Bridge type:1200*280*1000mm
  • Rod length:510 - 600mm
  • Fully automatic / semi automatic / manual type are optional
  • Control panel with counting function,LED display function (optional).
  • Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products





Technical Parameters


Structure

frame structure / standard stainless steel shell

Production

full CNC laser cutting machine production

FinishingBrushed surface (Standard) / Polishing surface
Dimensions1200 (L) * 280 (W) * 1000 (H) MM

Rod length

510mm

Arm Diameter

38mm (Standard) / 48mm

Max Tolerance of Arm30kg
Driving Force of Arm3kg

Stainless steel thickness

1.5mm

Drive Solenoid

DC 24V

Power supplyAC220  (110)  ± 10%V,50Hz

Working life

3,000,000 times

Communication Interface

RS485 (1CH) / RS232 (3CH) ; Available to CAN BUS and Ethernet (Optional)

Transit Speed

20 ~ 35 passage / minute

Work Environment

Indoor / Outdoor (Shelter)

Use place

station, park ,apartment, school, factory etc








Product Descriptions:


According to different control modules, this series can be divided into Fully-Automatic Type, Semi-Automatic Type, and Manual Type.Standard tripod turnstile often use semi-automatic mechansim,if you need fully automtic or manual type,it absolutely no problem

Semi-Automatic Type:


  1. Model: TDZ-S325
  2. Auto-drop-arm function: the middle arm can drop down automatically (default) (or free passing) when the power is off.
  3. Emergency-escape function: the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
  4. The structure has no motor.
  5.  Both directions can be set as controlled mode or free mode.
  6. NO mode & NC mode can be switched over by users easily & freely.
  7. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.



Customized Features:



  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software



Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel 0
 Fully automatic tripod turnstile gate with One-dimensional code , 316 stainless steel 1
