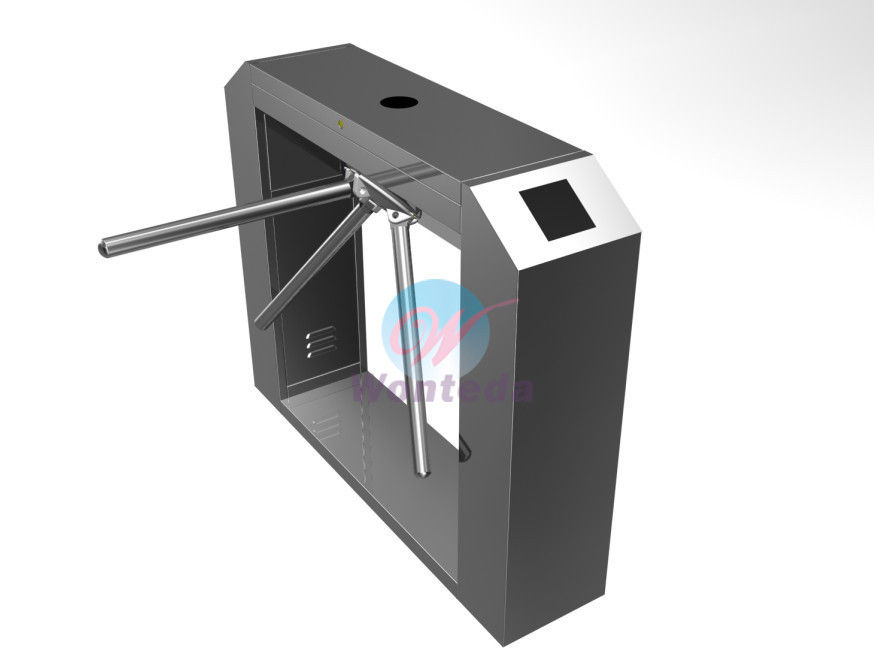

Automatic Tripod Turnstile 304# Stainless Steel Security Access Control Door

Automatic Tripod Turnstile 304# Stainless Steel Security Access Control Door

  • Automatic Tripod Turnstile 304# Stainless Steel Security Access Control Door
Automatic Tripod Turnstile 304# Stainless Steel Security Access Control Door
Product Details:
Place of Origin: Tripod Turnstile Barrier Made in China
Brand Name: Wonteda
Certification: CE
Model Number: WTD-A607
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 10-15 days
Payment Terms: T/T ,Western Union,Paypal etc..
Supply Ability: 1000 Set/Month
Contact Now
Detailed Product Description

Description:

    All turnstile models used unique design methods,offer sufficient space to integrate any access control system.Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.Mifare-1, IC, ID ,HID and Bluetooth are available to be used with the tripod turnstile,to prevent non- authorized person to enter.It is commonly used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc..

Specification:

  • Material:304 stainless steel
  • Work voltage: AC220V±10% 50HZ±10%
  • Dive moto: 24V DC brush
  • Size: 1200*280*1000mm
  • Arm length: 510mm
  • Weight:      50kg/unit
  • Arm's max bearing force: 80KG
  • Channel width: 550MM
  • Transit speed: 30-40 people/minute
  • Door opening direction : one-way or two-way traffic ( can be set )
  • Working temperature:-10°C to +70 °C
  • Relative humidity: ≤90%, no condensation
  • Barrier open and close time: 0.3s
  • Work environment : Indoor and outdoor (shelter)  Ip45.
  • Normal work life: 3,000,000 times
  • Input interfaceRelay signal, 12V level signal, RS 485, distance ≤1200m

System function:

1.Can open the turnstile by two input signals (signals can be input by access controller, buttonor other equipments)

2.The 3 arms can rotate in one or two directions, controlled by an access control system or push button at a reception desk school, it prevents unauthorized people to enter the restricted areas,
3. Direction guide function,   when the turnstile is ready to read card, the yellow light in the middle will turn one; after reading card and ready for passing, the upper blue light will turnon; if try to push the railing without permission, the red light will turn on
4. Single direction or double direction optional
5. Railing will be off when power off
6. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(Can be set in the control board)
7. Voice prompt and display screen available (optional)
8. Can add a counting board to count number of passed people (optional)
9. RS485 communication, PC command through serial port is allowed (optional)
10.Alarming output for fire Alarm Interface(optional)

You can custom made appearance of turstiles   can choose 316 stainless steel  or each color of iron baking varnish

Size:
Automatic Tripod Turnstile 304# Stainless Steel Security Access Control Door 0
