Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Hongmen |
| Certification: | CE |
| Model Number: | HDR51B |
| Minimum Order Quantity: | L=3m * H=1.5m |
|---|---|
| Packaging Details: | Iron rack plus plywood |
| Delivery Time: | 10 Working Days |
| Supply Ability: | 30.00m/month |
| High Light: | Bi Fold Gates For Driveways,Electric Bi Folding Gates |
||
|---|---|---|---|

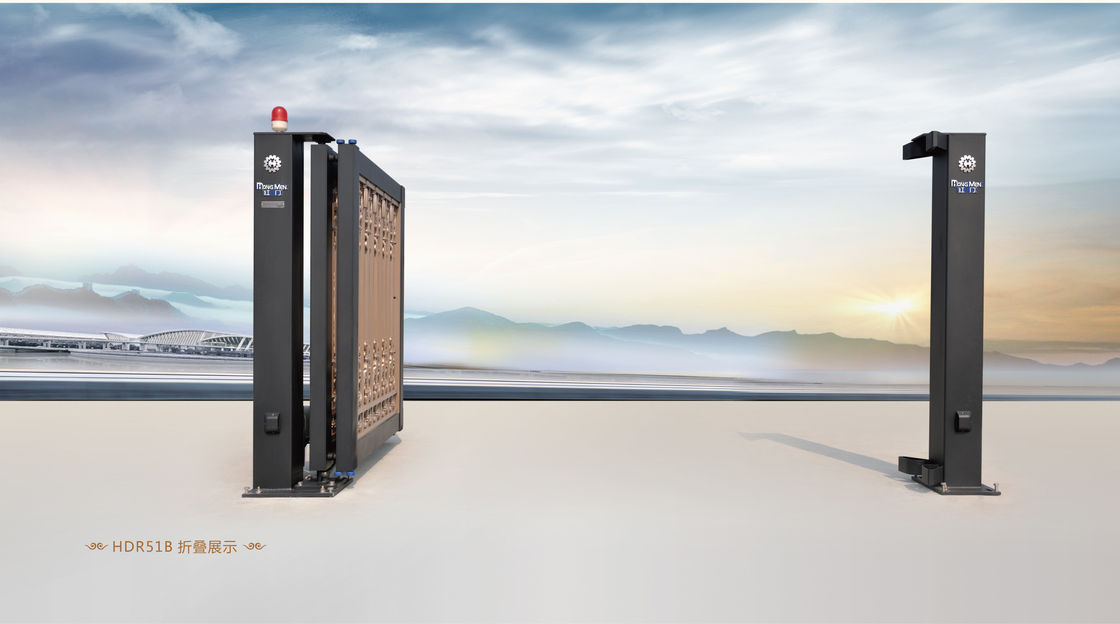

Metal Aluminium Collapsible Bi Folding Gates For Driveways
Features:
Specifications:
Material Specification:
| Description | Material | Hardness (HW) | Specification (mm) |
| Front Gate Frame | Q235 | / | 200*200*d5.0 |
| Rear Gate Frame | Q235 | / | 200*200*d3.0 |
| Auxiliary Gate Frame | 6003-T5 | 10-13 | 2.5*25*d1.5 |
| Slide Bar | 6003-T5 | 10-13 | 120*74*d2.5 |
| Upright Post | 6003-T5 | 10-13 | 120*85*d2.5 |
Technical Specification:
| Operation Voltage | 220V± 10%, 50Hz-60Hz |
| Operation Temperature | -25ºC to +70ºC |
| Environment Humidity | < 90% |
| Operation Speed | 16m/min |
| Motor Power Rating | 250W |
| Motor RPM | 1400r/min |
| IP Rating | IP44 |
| Insulation Grade | F |
| Speed Reduction Ratio | 1000: 1 |
| Remote Distance | 50m (empty space) |
Pictures:
