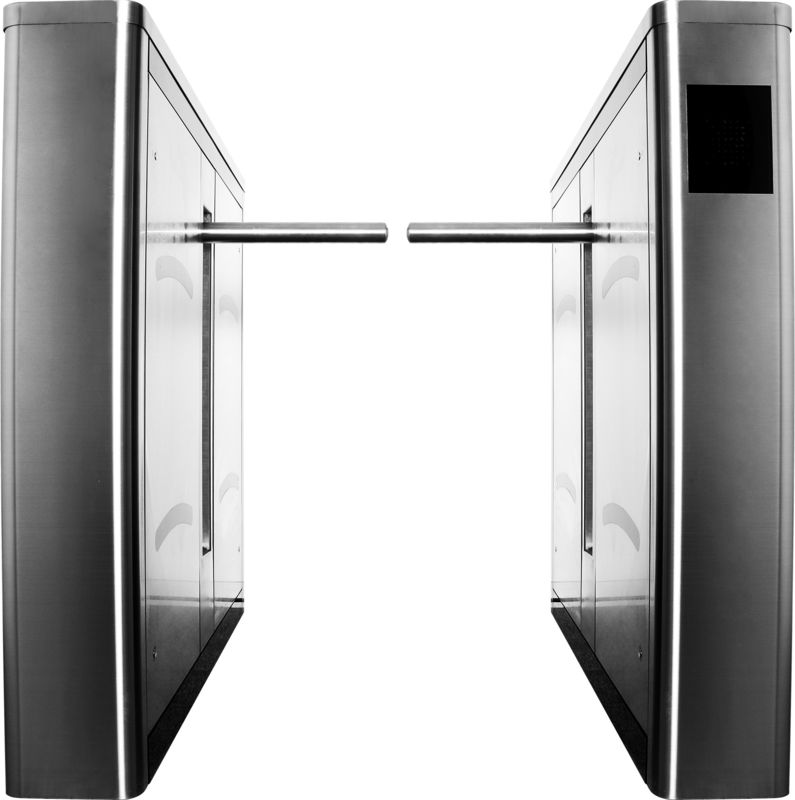

RS232 304 stainless steel automatic Waist-high railing section Access Control Swing Arm Barriers rotary gate

Waist-high railing section barrier gate of rotary type
manual/intelligent swing gate
Clamping avoid
Fault detect & auto alarm

Waist-high railing section barrier gate of rotary type ; Security Entry Swing Turnstile Access Control

  Full automatic 304 stainless steel high speed swing turnstile barrier gate security access control





1.Description:

 Integrating mechanism, electronics and micro-processor advanced technologies.The swing barrier is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.



Flap turnstile designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out .



2. Technical Parameters:



1	Power	AC220C±10V,50HZ
2	Operating Temperature	-15°C-70°C
3	Relative Humidity	≤95%, No Densation
4	Access Width	≤1200mm
5	Passing Speed	50persons/min
6	Motor	100W/24V
7	Motor Operation Speed	1600R/Min
8	Communication Distance	≤1200M
9	Input Connection	+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
10	Communication Connection	RS485 Communication Module Standard.
11	Material	thickness is no less than 1.5mm, Housing - 304 stainless steel     Arm - Acrylic/202stainless steel
12	Running Life	5--8 Million(Continuous Opening and Closing Operation)
13	IP	54
14	Colour	SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
15	Operation Place	Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control



3. Functions and Features :


1. Well in design, rustproof, durable and can resist external destroy.



2. Self-inspection and alarm.



3. Clutch transmission mechanical system, durable, no noise and long life.



4. Easily integrated with any type of readers such as IC, ID, bar code and even magnetic card.



5. Bi-directional passing or single way passing.



6. Adjustable normally open or normally closed, in order to meet the requirements of the different venues.



7. Arm close delay function, after a valid pass, arms close in 10 seconds. (adjustable, from 1-60s)



8. Anti-rush function: if there is no open single, arm will be holding tightly.



9. Valid lock function can allow one passage at one time.



10. Optional LED Counting and Direction indicating.



11. Anti-clipping function. During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for a while.



12. It will lock automatically if passage through turnstile is not completed within pre-set time, the setting-time can be adjusted via parameter change.





 4. Wiring diagram:





5. Application

main features of SEWO barrier gate:
stand-alone operation / operation as part of access control systems
models for indoor and outdoor applications
high throughput
bi-directional passage control
led directional indication / status lights
anti-panic folding arms
safe supply voltage 12-36V
key override control for emergency situations
smooth reset of barrier arms after each passage
simple installation with anchor bolts
complete turnkey delivery set
