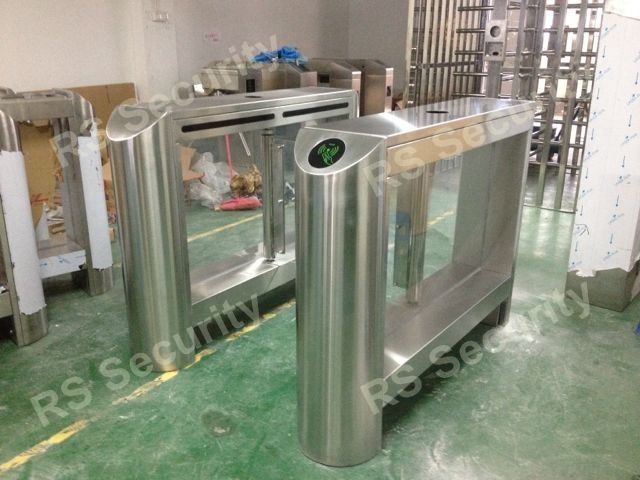

Electronic Full Automatic Swing Barrier Gate Shock Proof for Metro

Electronic Full Automatic Swing Barrier Gate Shock Proof for Metro Turnstile



Quick Detail:



Product Name:Swing Gate Turnstile



Type:Access ,Parking System,Taffic Barrier,Barrier Gate



Brand Name:   RS Security



Model Number:   RS 616



Application: Bank, Office building, company, fitness club, prison, hotel lobby, school



Material:   304 stainless steel



Size:  1400x200x990mm



Bi-directional access control



FCC,SGS,ROHS,CE



Electronic Full Automatic Swing Turnstile And Water-Proof Access Control Turnstile





Description:





The flap gate is usually used in bank lobby, office building, fitness club, school, it prevents unauthorized



people to enter the restricted areas,



The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal



after a valid card has been presented to allow the authorized user to pass. The fast moving close behind



the authorized person to deter tailgaters.





Features



Both directions can be set as controlled mode or free mode.



NO mode & NC mode can be switched over by users easily & freely.



Self-recovery function: the machine will recovery automatically with invalid counting if passage is not



completed within pre-set time (5 seconds default, adjustable by software).



Self-examine Function: it is convenient for users to maintain and use.



Tailgating-detection function.



Intruding-alarm function.



Anti-pinch function: protection against finger entrapment and personal injury.



Emergency-escape function: the obstacles will open automatically by pressing the emergency button



which can be remote-controlled whether the power is on or not.



With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse



signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.



Each machine can be set by Physical Address (Optional).



Equipped with free control software for man-machine interface & control command SDK.



Applications:



High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.





Specification





Material	304 stainless steel	Input voltage	220V AC220±10%
Size	1400x200x990mm	Arm width	300
Net weight	102kg/unit	Arm material	Acrylic
Motor	24V DC brush	Top Cover	stainless steel
Communication   interface	RS485	Sensor beams	5 pairs for 1 complete lane
Transit speed	30-40 people/minute	Service life	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level   signal,
Clear passage width	600mm	Work environment	Indoor and outdoor (shelter)
Number of led lamp	1pcs or 3 pcs	Model	RS 616





Competitive Advantage:



We are a leading manufacturer of turnstile and speed gate in China.



We focus on pedestrian turnstile gates.



We keep stock for regular products and we can support small orders. Usually, our lead time is just 3



days.



Design products according to customers’ requirements.



Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries



Gratitude: We cherish the business chance you give us and return you with quality products and good



service.



Professional: We have been in this business for more than 8 years. We have a strong professional team



with various experiences.



We keep doing new product development. Our goal is to enhance our competitive capacity constantly.



Price: very competitive price and good quality products



Quality: we do 100% inspection before the shipment.



Promise: we are always ready to take the responsibility if any loss caused to our customer due to our



mistakes.
