Software Reengineering Version RFID Parking Management System

   Application  Scope

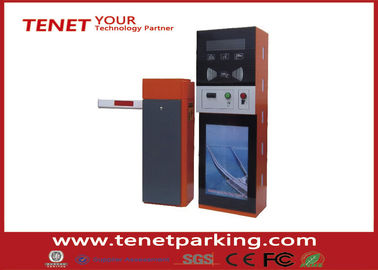

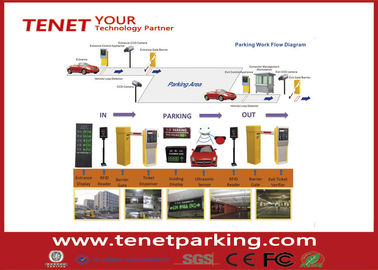

☆ Parking Entrance and exit
☆ Pedestrian Passageway
☆ Expressway slip-road
☆ Access Control of the Residential Area


   Products Profiles

☆ Integration design promising the low cost but high performance
☆ Embedded industrial control system, promising the energy-saving and high-stability
☆ Engineering design promising the installation and maintenance easy and effective
☆ Standard interface modules reducing the maintenance cost
☆ Ustability design of software promising the pleasant user experience
☆ Internet control management reducing cost and trouble
☆ Supporting off-line operation

   Industrial Standard

☆ Standard TCP/IP Internet protocol
☆ 32-bits ARM CPU
☆ Real Time Operating System(RTOS)
☆ Low-power consumption
☆ Wide temperature range(-40℃to 80℃)
☆ Anti-thunder & anti-interference design

   Secured Network

☆ Standard TCP/IP Internet Protocol
☆ Self-calibration high precision clock
☆ CSS secure communication
☆ Self-defined encryption function

   Detailed Features

☆ Embedded TCP / IP network design, easy access to LAN, saving wiring workload.
☆ Two Wiegand reader interfaces, supporting Wiegand output reader format 26, 34, 44.

☆ Two RS232 Reader Interfaces, support the M1-S50, S70 card reader interface.
☆ Entrance/ exit control of flexible options, code switch by pulling the controller is set to import or export       control.
☆ RS485 display interface to access the poll box displays, parking spaces and two advertising display           screen.
☆ Digital voice synthesis output, on-board storage of voice, speech by the software updates site                   content.

☆ Four relay output interface can control the automatic barrier; for opening and closing, topping and             lighting.
☆ Supporting the IC card, ID card and IC card and ID card mix.
☆ Supporting network to run the two-way operation and off-line operating mode.
☆ Onboard card number stored number: 25000; offline record store out of the number of admission:             80000.
☆ Controller firmware can be updated via the web site.
