Home ProductsIntelligent Car Parking System

Automated RFID parking management system with smart card dispenser

Automated RFID parking management system with smart card dispenser

  • Automated RFID parking management system with smart card dispenser
Automated RFID parking management system with smart card dispenser
Product Details:
Place of Origin: China
Brand Name: TENET
Certification: CE/ROHS/FCC/SGS
Model Number: TCP/IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in standard carton
Delivery Time: 3~5 working days after received your payment
Payment Terms: T/T and western Union
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: Parking System Work Voltage: DC24V/3A 12V5A
Application: Parking Lots Interface Mode: RS232,RS485, Wiegand 26
Work Temperature: -40℃ To +80℃ Network Commuication: TCP/IP
High Light:

RFID based parking management system

,

automated car parking system

 RFID parking management system with smart card dispenser





1.1 Main features

  • Embedded TCP / IP network design, easy access to LAN, saving wiring workload.
  • Two Wiegand Reader Interfaces, support Wiegand output reader format 26, 34, 44.
  • Two RS232 Reader Interfaces, support the M1-S50, S70 card reader interface.
  • Entrance/ exit control of flexible options, code switch by pulling the controller is set to import or export control.
  •  RS485 display interface to access the poll box displays, parking spaces and two advertising display screen.
  • Card dispenser control interface (entrance) or card collector control interface (exit).
  • Digital voice synthesis output, on-board storage of voice, speech by the software updates site content.
  • Four relay output interface can control the automatic barrier to opening and closing, stop and lighting.
  • Support the IC card, ID card and IC card and ID card mix.
  •  Support network to run the two-way operation and off-line operating mode.
  • Onboard card number stored number: 25000; offline record store out of the number of admission: 80 000.
  • Controller firmware can be updated via the web site.



1.2 Application Overview


Controller uses ARM chips, full TCP / IP network technology, real-time embedded operating system design. Support to non-contact type ID card, IC card or ID card and IC card mix of parking management system. TCP / IP technology for users to install, use, maintenance,

upgrades, upgrading and expansion to bring the convenience and fast, has a very high cost.


System can be run offline; the network communication failure, all entrance and exit are still able to work without affecting users in and out.

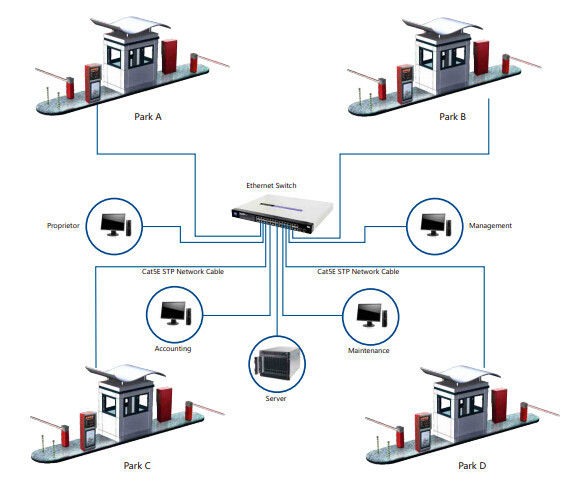

1.3 One entry one exit standard parking lot management system





3.1 Entrance equipment



       1) barrier gate (straight arm)

        2) vehicle detector

        3) ticket box

        4) entrance controller machine

        5) system power supply

        6) card issuing machine

        7) vehicle detector

        8) IC/ID card reader

        9) LED display( English/ Chinese)

        10)  Intercom extension



  3.2 Exit equipment



        1) barrier(straigth arm)

        2) vehicle detector

        3) ticket box

        4) exit controller machine

        5) system power supply

        6) IC/ID card reader

        7) LED display( English /Chinese)

        8) Main Control Board



 Automated RFID parking management system with smart card dispenser 0





 Automated RFID parking management system with smart card dispenser 1
