   Parking Guidance System

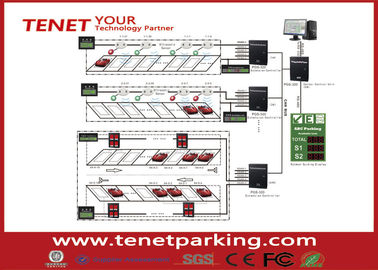

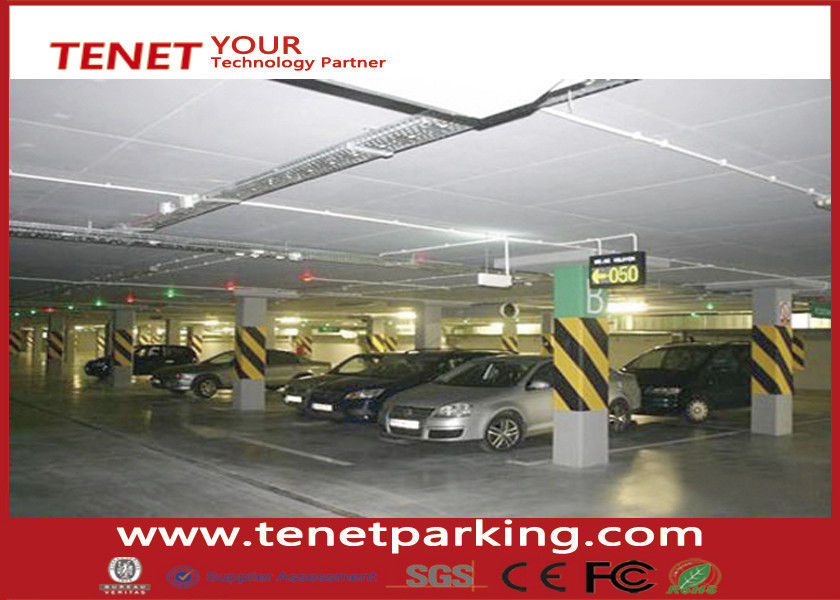

   Work Principle

     The LED display in the entrance tells the car which parking zones are available and how many parking lots are left in these zones. The green light of the ultrasonic sensor will tell the car which parking lots are available while the red light tell which parkign lots are occupied.

☆ It is used to detect and display the real-time space status with the vehicle ultrasonic sensor installed at each parking slots. Drivers are guided to available parking slots by colour-coded LED light; Green for available, red for occupied, blue for disabled.

☆ Meanwhile, the real-time parking space status will be transmitted to zone controller.The zone controllers will collect information and send them to the central controller.

☆ Central controller will receive and process the data, then forward the processed data to LED display to show the real-time available parking slots by word, number and arrow so that the drivers go to park easily.

   Advantages for Drivers

☆ No nerve-racking search, stress-free parking.
☆ Save parking time
☆ Save fuel and alleviate car wearing.
☆ Avoid unnecessary conflict during parking.


    Advantages for Operators

☆ Easy to install and maintain
☆ Reduce labour cost in manageing the garage
☆ High parking space utilization
☆ Allow customers to park in a stress-free environment.
☆ Reduce traffic congestion indoor

   Ultrasonic Sensor

   Description

☆ Function: Real-time detection of parking spaces on whether a vehicle is present
☆ Application: Vehicle counting system, parking spaces guidance system
☆ Principles: Ultrasonic Ranging Radar
☆ Communication mode: RS485 CAN bus
☆ Frequency: 40 KHz
☆ Detection range: 30 ° angle, the effective filtering of human interference
☆ Operating Voltage: DC12V
☆ Operating Temperature: -10℃ to 50℃
☆ Address Code: 6-bit code switch, maximum 64 addresses can be installed
☆ Instructions: Green light without car or Red light with a car
☆ Security Protection: lightning protection function, anti-polarity power supply function

   Parking LED Display

   Application

☆ Parking lot entrance/exit information display

☆ Parking lot space information display

☆ City guidance space information display

   Products Features

☆ Industrial engineering design concept

☆ Embedded ARM industrial standard

☆ Providing secondary development technical support

☆ Providing industry application solutions

☆ Multi-lingual character can be optional
